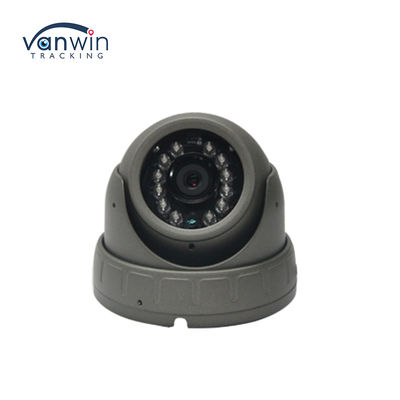

Wide Angle Lens Car Rearview Camera Waterproof Mini Simulation AHD Safety
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-204IP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Type: | Car Dome Camera | Style: | Dome Camera |
|---|---|---|---|
| TV System: | PAL Or NTSC | Technology: | Infrared |
| Power: | 12V- 24V | IR LED: | 12pcs |
| Audio Built-In: | Support | Sensor: | CMOS / CCD |
| Highlight: | Mini Simulation AHD Car Rearview Camera,Wide Angle Lens Car Rearview Camera |
||
Product Description
Wide Angle Lens Truck Bus Taxi Truck Trailer Car Reversing Assistance Rearview Waterproof Mini Simulation AHD Safet
Features of waterproof AHD reversing camera:
1. Main features:
*Use a 130W camera board;
*Excellent overall performance, clear and bright picture quality;
*No drilling required, easy to install.
2. Specifications:
*Image sensor: 1/3V20+H65 CMOS
*Signal system: PAL (default) or NTSC
*Lens: 7mm/2.1mm/2.8mm/3.6mm/customizable optional
*Effective pixels: 1280 (H) * 960 (V)
*Minimum illumination: 1 lux/F1.2
*Horizontal resolution: AHD: 13000 pixels 960P
*Frequency: 50Hz or 60Hz
*Gamma: 0.45
*Shutter speed: 1/50 to 1/100000 seconds or 1/60 to 1/100000 seconds
*Signal to noise ratio: ≥ 48dB
*Video output: 0V p-p
*Power supply: DC12V (± 10%)
*Power: 1W
*Current: 100mA
*Perspective: optional
Overview
- This is Sony CCD Mini dome cameras with starlight night vision for internal use.
- It works with 12pcs F5 infrared LEDs to create 10-15 meters infrared distance for night vision to monitor in dark environment.
- It adopts 2.1mm, 2.8mm, 3.6mm fixed focus lens to let you view objects within 10~15 meters.
- It can be worked with DVR recorder, quad processor, DVR, Reversing system.
- It can be viewed through monitor, TV, PC, smart phone and etc.
Camera Technical Specifications
| Technology | infrared |
| Sensor | Sony CCD 600TV line |
| Shape | Dome camera |
| Types | Indoor car camera |
| Waterproof | IP64 |
| Audio | Optional audio |
| Lens | 2.1MM/2.8MM/3.6MM |
| IR LED | 12PCS |
| Power | DC12V/24V |
| Color | Black |
| Connector | 4 PIN connector or RCA connector |
| Material | aluminium alloy |
| Effective Pixels | 720P/1.3MP 1080P/2.0MP |
| Operating Temperature | -25℃~70℃ |
| Chip Technical Specifications | |||
| Image Sensor | 1/2.9" IMX323 2.0 MP | Video Out | 1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
| Image System | PAL/NTSC | WDR | auto |
| Resolution | 1920 (H)×1080(V) | SNR | >45db |
| Min.illumination | 0.01Lux full color | White Belance | AWB |
| Electronic Shutter | 1/25s~1/100,000s | DR | 76db |
| Video Standard | AHD | Advanced Function | 2D_DNR |
| Frame Rate | 1920×1080@25 fps; 1920×1080@30 fps; |
Working Environment | -25℃~+70℃,Humidity 95% |
| Lens | 2.1/2.8/3.6 | Power supply | DC 12V +/-15%, |
There are three kinds pof connectors for option
1. 4-pin connector
2. RAC connector
3. BNC connector
We are different from other suppliers.Welcome you to test and compare.
Our advantages
1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.
2. Careful production Process:
Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been cooperating with us all the time .
4.We explore some wide angle or special cameras to meet your requirements that others don't have.
FQA
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
