Waterproof IP69K Outdoor Indoor Car Surveillance Camera 170 degree 1080P Vehicle Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-362B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Maximum Current: | 150MA | Resolution: | 480TVL |
|---|---|---|---|
| Image Sensor: | PixelPlus PO3100K CMOS 1/3 | Len Angle: | 170 Degrees |
| Weight: | About 170G | Waterproof: | IP69K |
| Warranty: | 1 Year | Connectors: | 4PIN Or RCA |
| Shockproof Level: | 4G | ||
| Highlight: | 1080P Car Surveillance Camera,Waterproof Car Surveillance Camera,170 degree 1080P Vehicle Camera |
||
Product Description
Waterproof IP69K Outdoor Indoor Car Surveillance Camera 170 degree 1080P Vehicle Camera
Main Features
1)CMOS image sensor;
2) Waterproof IP69K;
3) Resolution: 700tvl/800tvl/720P/960P/1080P optional;
4) Len Angle: 170 Degrees;
5) Output: 1 channel CVBS output
6) Cabale jack: aviation/BNC/RCA optional;
7) PAL/NTSC optional, DC12V-24V power supply;

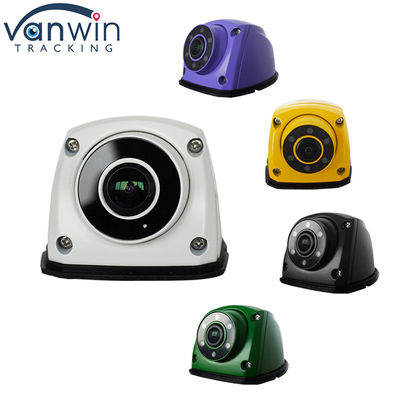

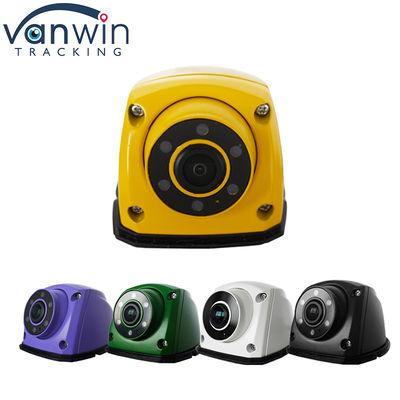

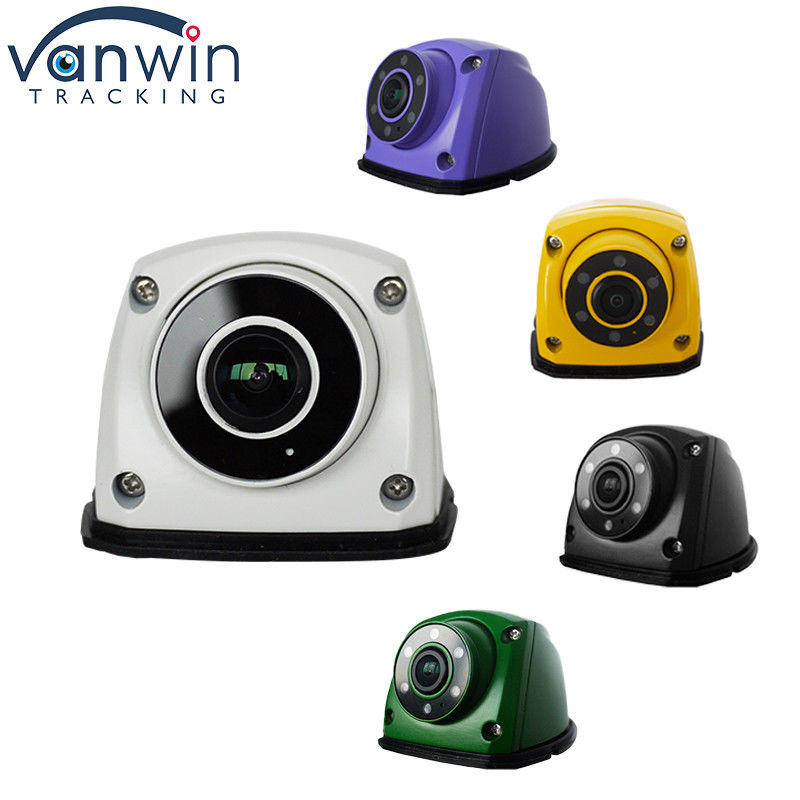

8) Color: Black(default), white/yellow/purple/green (optional).
Main Specifications
| SPECS | Model No.:VW-C392 |
| Image sensor | PixelPlus PO3100K CMOS 1/3 |
| DSP chip | AVS7110 image correction chip |
| Resolution | 480TVL |
| Illuminance | 0.1Lux,infrared night vision |
| Viewing angle | 2.1 mm waterproof lens, 170 degree |
| Image | Mirror as default (Could set mirror&non-mirror switchable) |
| System | PAL system as default (Could set PAL&NTSC switchable) |
| Reference line | Off as default (Could be opened by software) |
| Appearance and Application | Aluminium alloy material, out-hanging design, suitable for bus, truck and small vehicles |
| Waterproof level | IP67 |
| Shockproof level | 4G |
| Connectors | 4PIN or RCA |
| Power supply | DC12-24V |
| Power consumption | About 1.8W |
| Maximum current | 150MA |
| Key control | Support single key adjustment |
| Output | 1 channel CVBS output |
| Working temperature | -20℃ to 70℃ |
| Storage temperature | -30℃ to 80℃ |
| Size | 67*55*43.5mm |
| Weight | About 170G |
| Accessories | hexagon screws, user manual |
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
