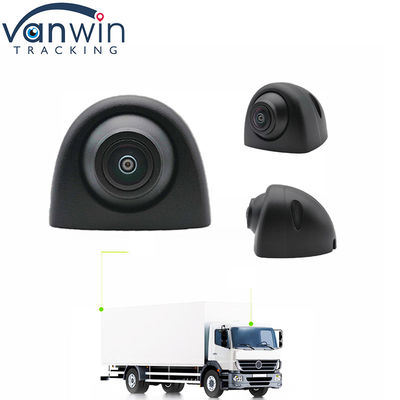

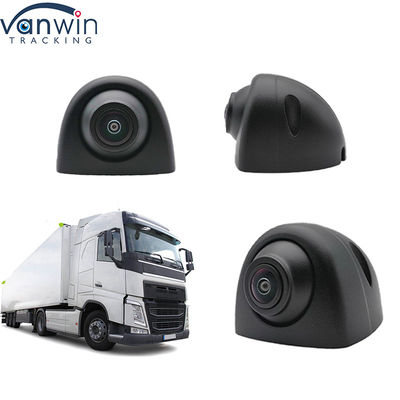

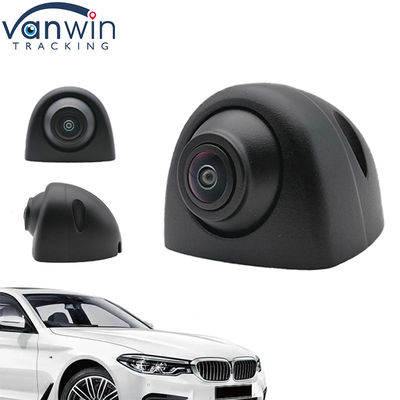

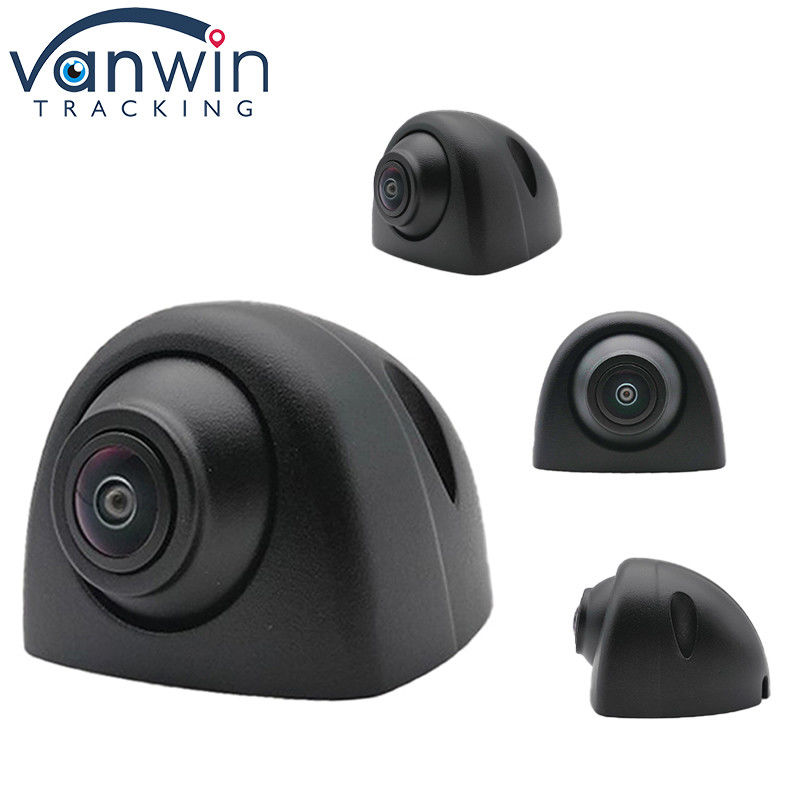

AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW361 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Scanning Mode: | Interlaced Scanning | Power Consumption: | ≤3.5W |
|---|---|---|---|
| IR Distance: | ≤8 Meters | TV System: | PAL/NTSC |
| Lens: | 2.1mm/2.8mm/3.6mm/6mm /other Optional | IR Leds QtyIR Leds Qty: | 12pcs LEDs |
| Warranty: | 1 Year | White Balance: | AUTO |
| Certification: | CE/FCC/RoHS | ||
| Highlight: | 1080P Bus Surveillance Camera,IP69K Bus Surveillance Camera |
||
Product Description
AHD 220° Waterproof IP69K 1080P Bus Surveillance Camera Vehicle Camera
Product Parameters:
| Technical Parameters | ||
| Image sensor | 1/3" SONY CCD | 1/3" CMOS |
| Horizontal resolution | 700TV Line | 800TV Line |
| TV system | PAL/NTSC | PAL/NTSC |
| Effective pixel | PAL: 976(H) x 582(V)；NTSC: 976(H) x 494(V) | 960(H)*576(V) |
| Minimum illumination | Color 0.1Lux,0 Lux with IR | Color 0.1Lux,0 Lux with IR |
| S/N ratio | ≥46dB | ≥52dB |
| Day/Night mode | Automatic color to black and white | EXT(default),AUTO,COLOR,B/W,Support IR CUT switching |
| Auto Gain Control | AUTO | |
| Backlight compensation | AUTO | |
| White balance | AUTO | |
| Scanning mode | Interlaced scanning | |
| Electronic shutter | AUTO/1/50(1/60)-1(100,000Sec) | |
| Video output | CVBS 1.0V p-p Composite Output 75ohm | |
| Lens | 2.1mm/2.8mm/3.6mm/6mm /other optional | |
| IR leds Qty | 12pcs LEDs | |
| IR distance | ≤8 meters | |
| Waterproof grade | IP68 | |
| Operating temp. | -20°C~+70°C | |
| Power supply | DC12V±10% | |
| Power consumption | ≤3.5W | |
Why you choose us Vanwin Tracking?
Shenzhen Vanwin Tracking Co.,Ltd. is one high-tech industry specializing in R&D ,production,sales of vehicle video monitoring system, GPS monitoring kits, intellectual public transit dispatcher`s monitoring system ,video people counter and various customized solutions for 16 years.
1.Our Mission
Make drivers safe, make vehicles safe, make passengers safe, make thousands of families safe and benefit mankind with our best items&service.
2.Complete Solution
We provide all kinds of complete security solutions for vehicles such as
buses, coaches, trucks, taxis, agricultural machinery, boats, police cars, ambulances, etc.
Our items are car camera ,car monitor, AI car dash cam recorder for taxi etc and 4ch 8ch mobile dvr series. Welcome you to browse our website below .
3. Strict testing process
A. Camera aging test
B High and low temperature test
C. Waterproof vacuum test
D. Anti-vibration test
E. Salt spray test
F. Focusing technology test
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
