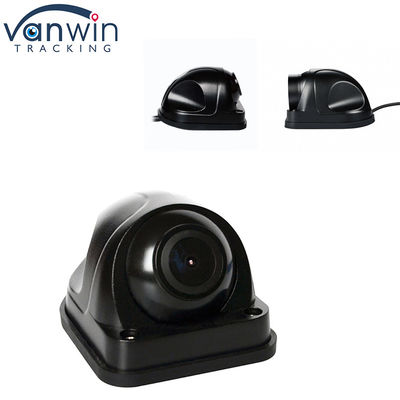

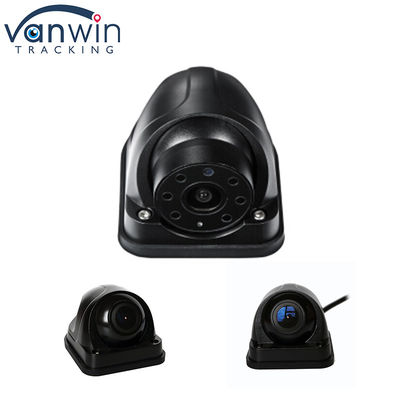

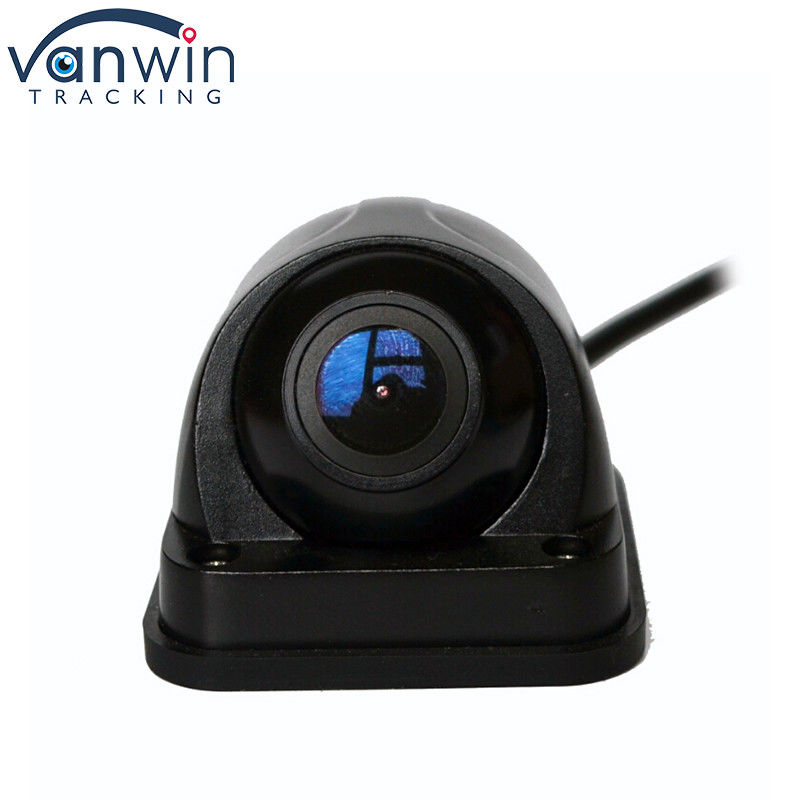

IP69 Waterproof 1080P Bus Surveillance Camera AHD For Truck Taxi Car Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW360 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Horizontal Resolution: | 800TV Line | Scanning Mode: | Interlaced Scanning |
|---|---|---|---|
| Power Supply: | DC12V (±10%) | Operating Temp: | -20°C~+70°C |
| White Balance: | AUTO | Power Consumption: | ≤1W |
| Application: | For Truck Or Bus | Certification: | CE/FCC/RoHS |
| Warranty: | 12 Months | ||
| Highlight: | IP69 Waterproof Bus Surveillance Camera,Bus Surveillance Camera AHD,Truck Taxi Car Camera |
||
Product Description
IP69 Waterproof 1080P Bus Surveillance Camera AHD For Truck Taxi Car Camera
Advantages of VANWIN cameras
1. Complete range of styles
(1). Private model: Exclusive agency, differentiated competition can attract customers and increase product added value; 170°/180°/190° lens, providing full range of angles as much as possible
(2). Hot-selling model: high cost performance, good value for money
(3). Network infrared model: can work normally in dark or dim light environment; night vision function
2. High-end quality, complete solutions
(1). Car Video recorder: AI technology with built-in storage function, convenient.
(2). Surveillance camera: can be used with DVR or monitor, large storage capacity, suitable for trucks, buses and public buses, etc.
(3). Rear view camera: increase the field of view, improve safety and convenience
3. Strict testing process
(1). Camera aging test
(2). High and low temperature test
(3). Waterproof vacuum test
(4). Anti-vibration test
(5). Salt spray test
(6). Focusing technology test
| Technical Parameters | |
| Image sensor | 1/3" CMOS |
| Horizontal resolution | 800TV Line |
| TV system | PAL/NTSC |
| Effective pixel | 960(H)*576(V) |
| Minimum illumination | Color 0.1Lux @ (AGC ON) |
| S/N ratio | ≥52dB |
| Day/Night mode | Color |
| Auto Gain Control | AUTO |
| Backlight compensation | AUTO |
| White balance | AUTO |
| Scanning mode | Interlaced scanning |
| Electronic shutter | AUTO/1/50(1/60)-1(100,000Sec) |
| Video output | CVBS 1.0V p-p Composite Output 75ohm |
| Viewing angle | 120°/150° |
| IR leds Qty | No LEDs |
| IR distance | ﹨ |
| Waterproof grade | IP69K |
| Operating temp | -20°C~+70°C |
| Power supply | DC12V±10% |
| Power consumption | ≤1W |
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
