Waterproof IP67 HD Vehicle Surveillance Camera 1080P Truck Bus Car Dome Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-201 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Lens: | 2.5mm/ 2.8mm/ 3.6mm Optional | Weight: | 0.4 KG |
|---|---|---|---|
| Audio: | Optional | IR Distance: | 10~20M, 12pcs Led Lights |
| Power Supply: | DC12V (±10%) | TV System:: | PAL Or NTSC |
| Warranty: | 12 Months | Certification: | CE/FCC/RoHS |
| Application: | For Truck Or Bus | ||
| Highlight: | 1080P Vehicle Surveillance Camera,Waterproof Vehicle Surveillance Camera,IP67 Car Dome Camera |
||
Product Description
Waterproof IP67 HD Vehicle Surveillance Camera 1080P Truck Bus Car Dome Camera
| Model | VW-201 | ||
| TV System | PAL or NTSC Optional | ||
| Image Sensor | 1/3" SONY EX-view HAD CCD II | ||
| Resolution | 500TVL | 600TVL | 700TVL |
| Effective Pixels | PAL:976×582; NTSC:976×494 | PAL:976×582; NTSC:976×494 | PAL:976×582; NTSC:976×494 |
| Min Illumination | 0.01 LUX | 0.01LUX | 0.001LUX |
| Lens | 2.5mm/ 2.8mm/ 3.6mm optional | ||
| Gain Control | Auto | ||
| Audio | Optional | ||
| Waterproof | Yes | ||
| Night Vision | Yes | ||
| IR Distance | 10~20M, 12pcs led lights; | ||
| Features | Low Operational Voltage; Vibrate-proof; High Stability; Durable; High Definition at Daytime; Good Night-Vision Effect; High Sensitivity; Low Noise | ||
| Cable Jack | Aviation/BNC/RCA Optional | ||
| Housing | Metal Housing | ||
| Power Supply | DC12V | ||
| Dimension | --- | ||
| Weight | 0.4kg | ||

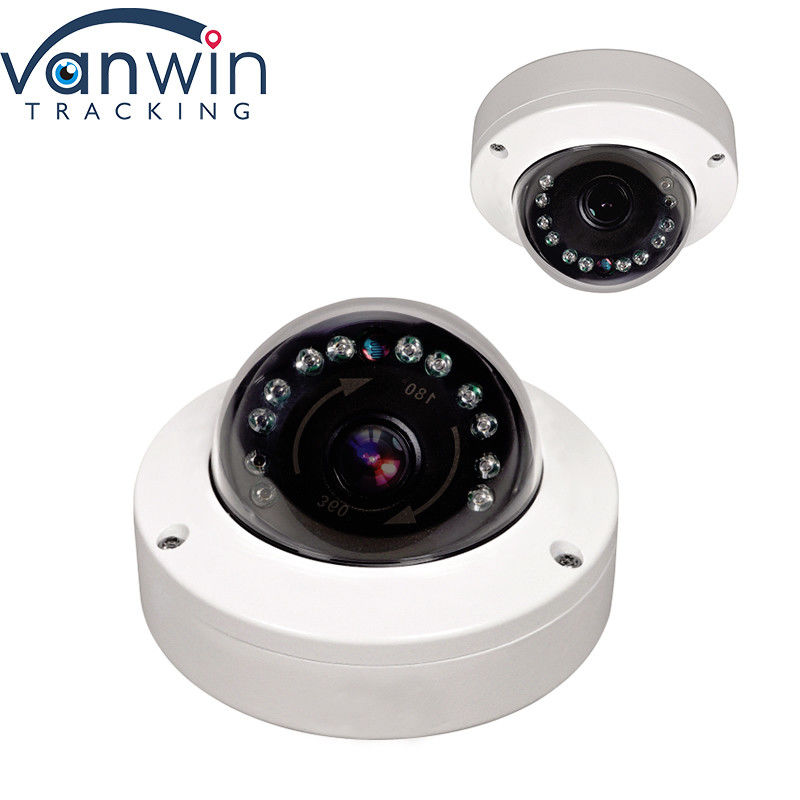

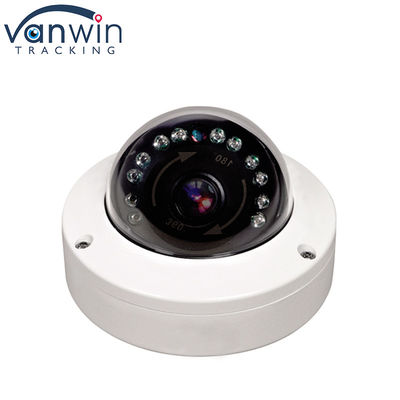

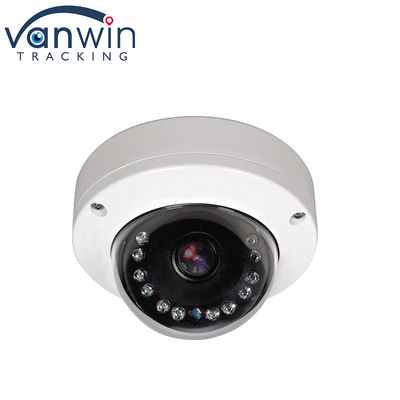

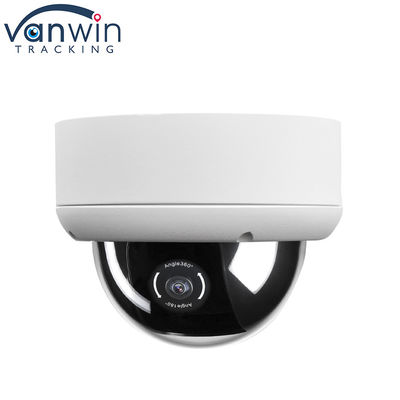

Product Photos
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
