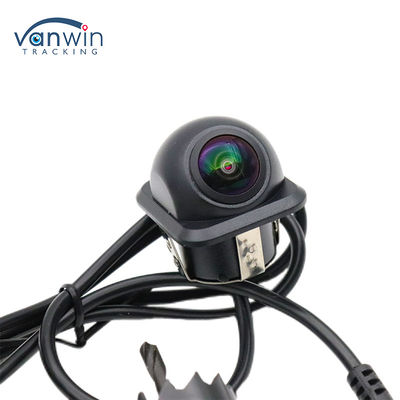

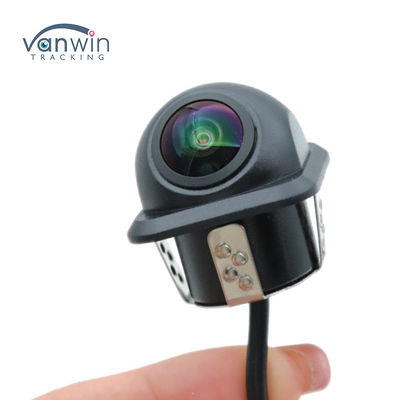

COMS CCD Chip High Definition Waterproof Reverse Backup Micro Car Rearview Camera
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-902 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Product Name: | Vehicle Hidden Night Vision Car Camera | Image Sensor: | CCD & CMOS |
|---|---|---|---|
| TV System: | PAL Or NTSC | Resolution: | 720P/1080P |
| Housing: | Plastic | Special Function: | Small, Lens Adjustable |
| Style: | Car/ Taxi Camera | Waterproof: | IP67 |
| Viewing Angle: | 110° | Lens Angel: | 170 Degree |
| Highlight: | COMS CCD Chip Reverse Backup Camera,High Definition Reverse Backup Camera,Waterproof Reverse Backup Camera |
||
Product Description
COMS CCD Chip High Definition Waterproof Reverse Backup Micro Car Rearview Camera

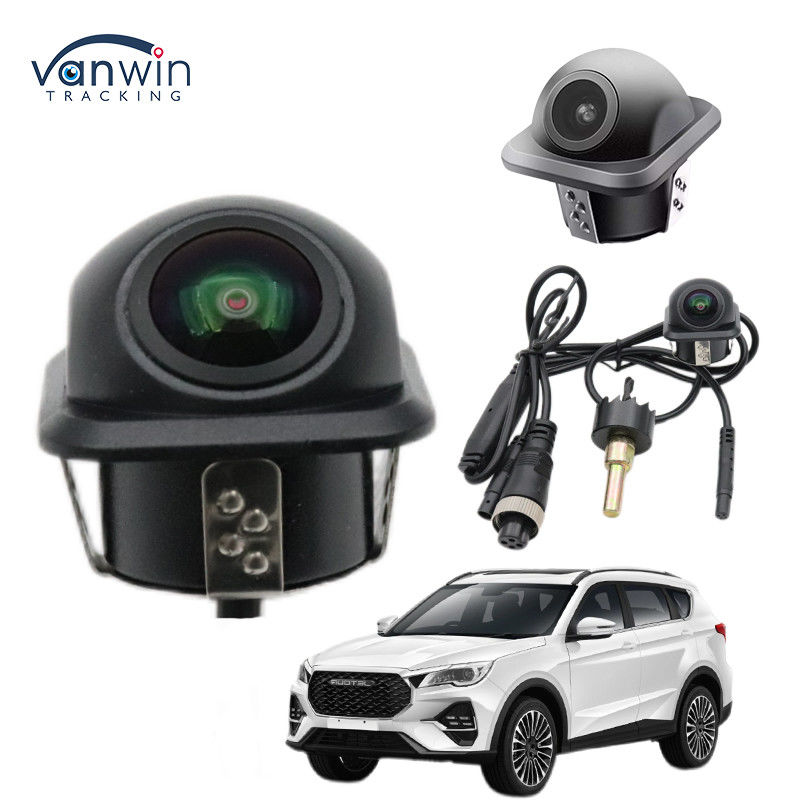

The mini car camera is generally used as Front / Rear / Left / Right View camera for all small Cars.
Reverse camera Main Features:
- High quality camera for front or back
- 120~170 degree large angle with from 3~5 meter range
- High resolution from 420~600 lines
- Mini illumination low to 0.01LIX
- Perfect image pictures both day and night
- TV system: NTSC (628*582) or PAL(510*492)
- Power used for 12V or 24V (different model)
- Water / Dust proof rate: IP67

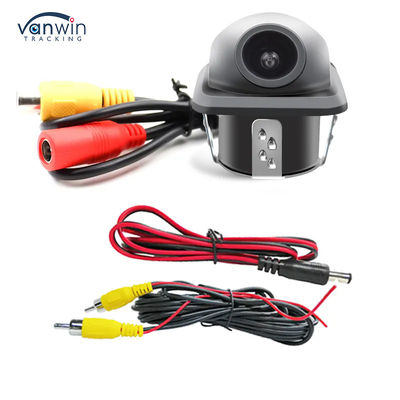

- 4-pin connector or RCA connector(Option)
Mini car camera Specifications:
| Images sensors | Best Quality | Normal Quality |
| Resolution(TV Line) | 600 CCD | 420 COMS |
| Effective pixels | 720*576 /720*480 | 580*540/580*492 |
| Minimum illumination | 0.5 lux | 1 lux |
| IP rating | IP67 | IP67 |
| lens Angle(Deg.) | 170° | 170° |
| TV System | PAL/NTSC | PAL/NTSC |
| Power Supply(DCV) | DC12V±1V | DC12V±1V |
| Power | <1W | <1W |
| Electronic shutter | 1/60(NTSC)1/50(PAL)1/10,000second | 1/60(NTSC)1/50(PAL)1/10,000second |
| S/N Ratio | ≥48dB | ≥48dB |
| Video output | 1.0vp-p.75ohm | 1.0vp-p.75ohm |
| White Balance | Auto | Auto |
| AGC | Auto | Auto |
| Operating Temperature | -20~+75(RH95% Max.) | -20~+75(RH95% Max.) |
| Storage Temperature | -30~+85(RH95% Max.) | -30~+85(RH95% Max.) |
| Optional Function 1 | Parking Line /Guide line | Parking Line /Guide line |
| Optional Function 2 | Mirror image & non-mirrored image | Mirror image & non-mirrored image |
Optional Fuction:
1. Mirror or Non-mirror
2. Paking line or without paking line
How to install:
1. Fix the camera to a special design hole in your car.
2. Connect the built in license plate light of the camera to where the stock license
plate light was connected to get the power.
3. Connect the power of the camera to your car reverse lights - red wire to positive and
black wire to negative.
4. Connect the video cable of the camera to the extension cord.
5. Connect the extension cord to your car monitor.
6. You will see the images when your car is in reverse shift.
Taxi surveillance camera FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is Vanwin Tracking.
- Q: What is the model number of this product?
- A: The model number of this product is VW-902.
- Q: Where is this product made?
- A: This product is made in Shenzhen, China.
- Q: What certifications does this product have?
- A: This product is certified by CE, FCC, and RoHs.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 5pcs.
- Q: What is the price range of this product?
- A: The price range for this product is $6-$18.
- Q: How is this product packaged?
- A: This product is packaged in a neutral carton box by default.
- Q: What is the delivery time for this product?
- A: The delivery time for small orders is 2-3 days and for big orders is 7-15 days.
- Q: What are the payment terms for this product?
- A: The payment terms for this product are Western Union, T/T, and Paypal.
- Q: What is the supply ability for this product?
- A: The supply ability for this product is 5,000pcs per month.
