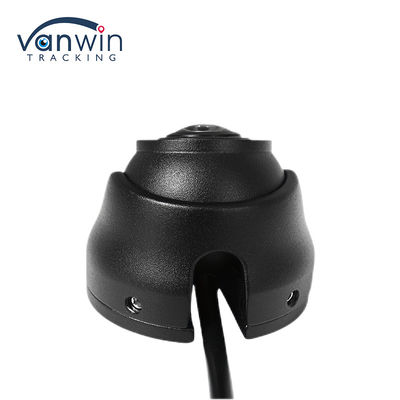

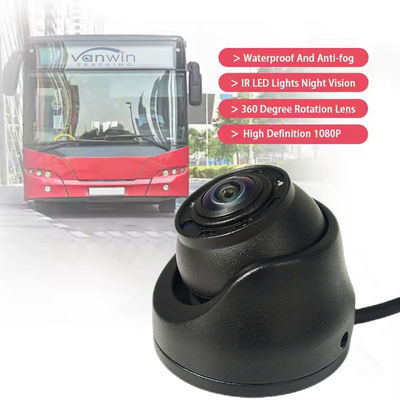

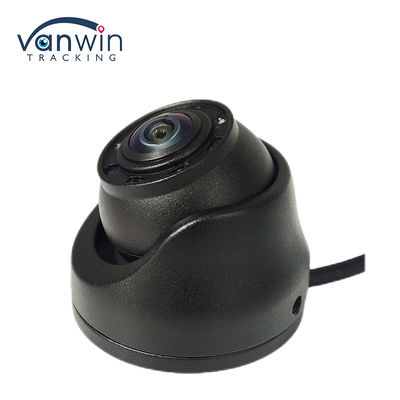

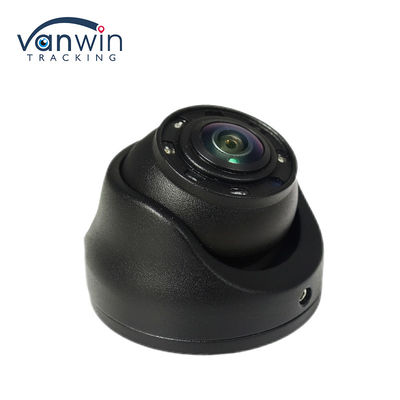

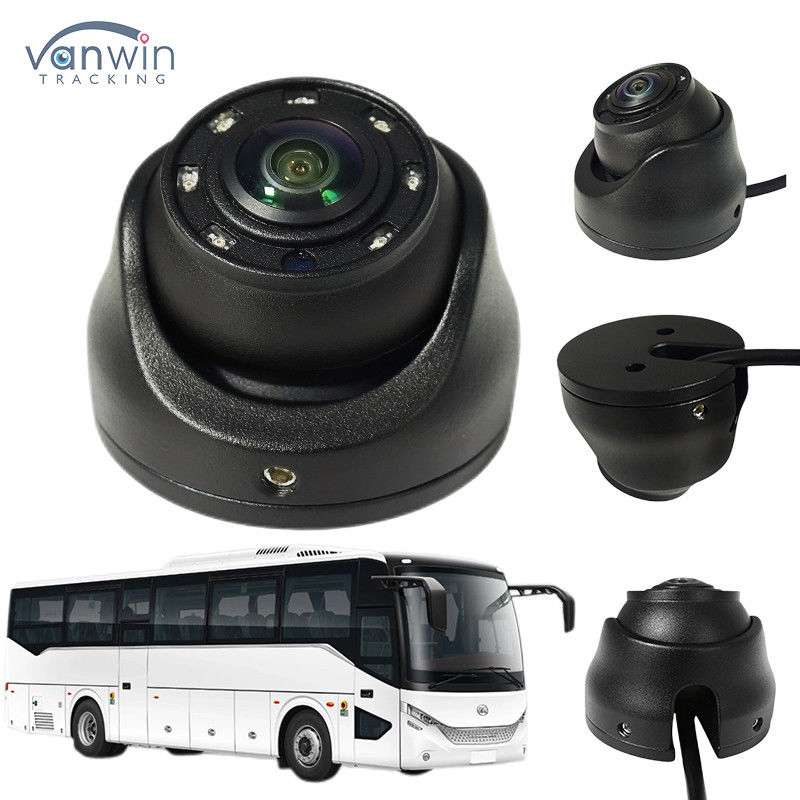

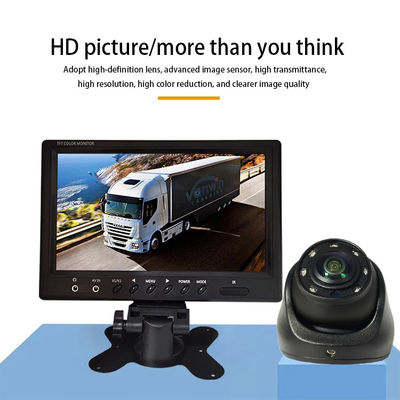

AHD High Definition Night Vision Waterproof Car Reversing Camera Bus Reversing Monitoring Camera
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-C680 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Product Name: | Bus Reversing Camera | Product Features: | AHD High-definition Night Vision Monitoring Camera |
|---|---|---|---|
| Image Sensor: | 1/2.9" CMOS | Horizontal Resolution: | 2.0Megapixel |
| TV System: | PAL/NTSC | Effective Pixel: | 1920(H)*1080(V) |
| Minimum Illumination: | 0.05Lux@(F1.2,AGC ON) | Digital Noise Reduction: | 2D-DNR,3D-DNR |
| Video Output: | AHD Standard，1080P Output | Viewing Angle: | H=120°,V=60° |
| Highlight: | Waterproof Car Reversing Camera,AHD High Definition Car Reversing Camera,Bus Reversing Monitoring Camera |
||
Product Description
AHD High Definition Night Vision Waterproof Car Reversing Camera Bus Reversing Monitoring Camera
Characteristics of bus reversing monitoring camera:
1. Waterproof high-definition night vision reversing monitoring camera for buses, providing escort for public transportation.
2. Waterproof design: Fearless of wind and rain, able to operate stably in any adverse weather conditions,
ensuring safe reversing of buses in various environments.
3. High definition picture quality: presenting clear and delicate images, allowing drivers to accurately
grasp the situation behind the car, not missing any details, and reversing more accurately and with peace of mind.
4. Night vision function: It still performs well in dark environments, and can be clearly seen even when
reversing at night, greatly improving nighttime driving safety.
Installation instructions for reversing surveillance camera:
| Technical Parameters | |
| Image sensor | 1/2.9" CMOS |
| Horizontal resolution | 2.0Megapixel |
| TV system | PAL/NTSC |
| Effective pixel | 1920(H)*1080(V) |
| Minimum illumination | 0.05Lux@(F1.2,AGC ON) |
| S/N ratio | ≥56dB |
| Day/Night mode | Color |
| Sync system | Internal |
| Backlight compensation | AUTO |
| White balance | AUTO |
| Electronic shutter | AUTO/1/50(1/60)-1(50,000Sec) |
| Digital Noise Reduction | 2D-DNR,3D-DNR |
| Video output | AHD Standard,1080P output |
| Lens | 3.0mm |
| Viewing angle | H=120°,V=60° |
| IR leds Qty | 7pcs LEDs |
| IR distance | ≥5meters |
| Operating temp | -20°C~+70°C |
| Power supply | DC12V±10% |
| Power consumption | ≤1.5W |
FAQ:
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
