12V DC12V±10% Power Supply AHD 1080P Vehicle Surveillance Camera for Bus Truck Car
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-224 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Power Supply: | DC12V±10% | Operating Temp: | -20°C~+70°C |
|---|---|---|---|
| White Balance: | AUTO | IR Distance: | ≥5meters |
| Lens: | 3.0mm | IR Leds Qty: | 7pcs LEDs |
| Video Output: | AHD Standard，1080P Output | Certification: | CE/FCC/RoHS |
| Warranty: | 1 Year | ||
| Highlight: | AHD 1080P Vehicle Surveillance Camera,DC12V Bus Surveillance Camera |
||
Product Description

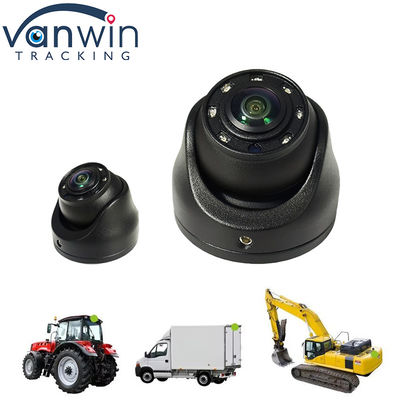

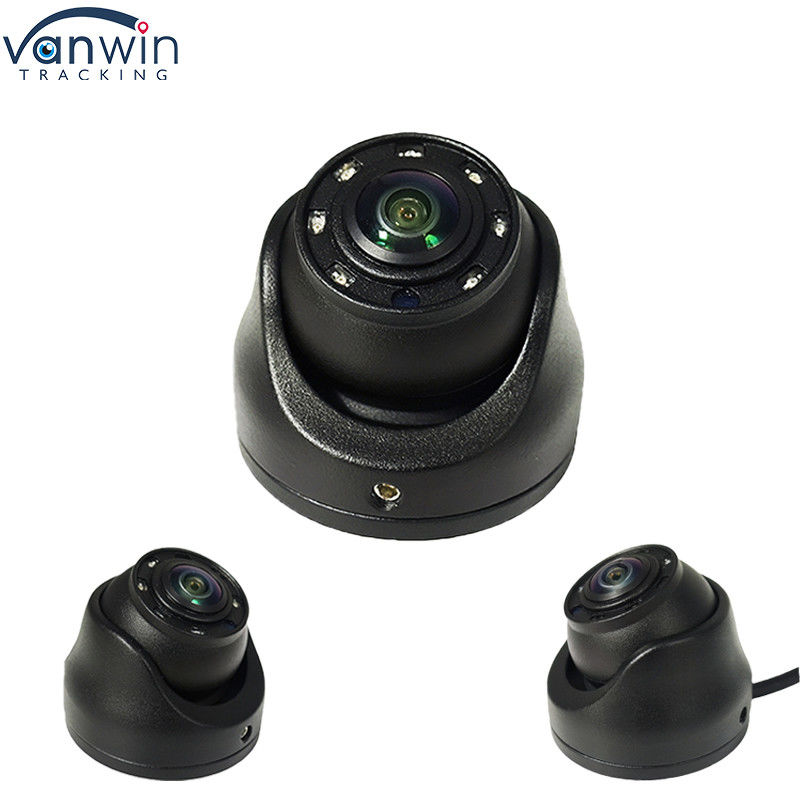

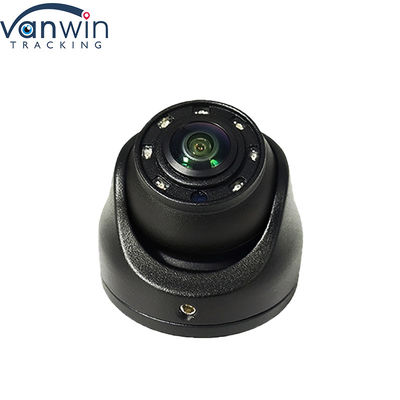

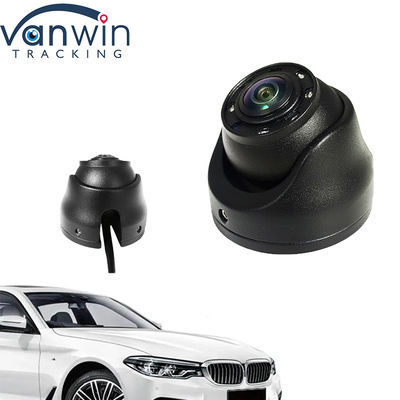

AHD 1080P Vehicle Surveillance Camera 12V Bus Truck Car Camera
| Image sensor | 1/2.9" CMOS |
| Horizontal resolution | 2.0Megapixel |
| TV system | PAL/NTSC |
| Effective pixel | 1920(H)*1080(V) |
| Minimum illumination | 0.05Lux@(F1.2,AGC ON) |
| S/N ratio | ≥56dB |
| Day/Night mode | Color |
| Sync system | Internal |
| Backlight compensation | AUTO |
| White balance | AUTO |
| Electronic shutter | AUTO/1/50(1/60)-1(50,000Sec) |
| Digital Noise Reduction | 2D-DNR,3D-DNR |
| Video output | AHD Standard,1080P output |
| Lens | 3.0mm |
| Viewing angle | H=120°,V=60° |
| IR leds Qty | 7pcs LEDs |
| IR distance | ≥5meters |
| Operating temp | -20°C~+70°C |
| Power supply | DC12V±10% |
| Power consumption | ≤1.5W |
Notes:
Strict testing process
1. Camera aging test
2. High and low temperature test
3. Waterproof vacuum test
4. Anti-vibration test
5. Salt spray test
6. Focusing technology test
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
