Hidden Taxi Surveillance Camera Supports GPS WiFi Connectivity Car Dashcam
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-Z-CA8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Product Name: | Taxi Surveillance Camera | Product Features: | Invisible High-definition Night Vision Monitoring Camera |
|---|---|---|---|
| Product Name: | 1080+720 Dash Cam | Master Chip: | Sigmatar8336 |
| Image Sensor: | GC2053 Sensor | Camera Lens: | F/NO 1.60 FOV(D)136 FOV(H)115 FOV(V)61 |
| GPS: | Dedicated GPS Module (optional) | Recording Mode: | Automatic Recording Upon Power On |
| Video Resolution: | Front 1920 * 1080 P25 | Screen Mode: | Just Like Display And Just Like Video Playback. |
| Highlight: | Supports GPS WiFi Car Dashcam,Hidden Taxi Surveillance Camera |
||
Product Description
Hidden Taxi Surveillance Camera Supports GPS WiFi Connectivity And Car Dashcam
Product features of taxi driving recorder:
1.Accurate positioning: The taxi features an invisible design that does not affect
the interior aesthetics and passenger experience.
2.Reliable recording: GPS driving recorder camera, accurately records driving
trajectory and images, providing protection for travel safety.

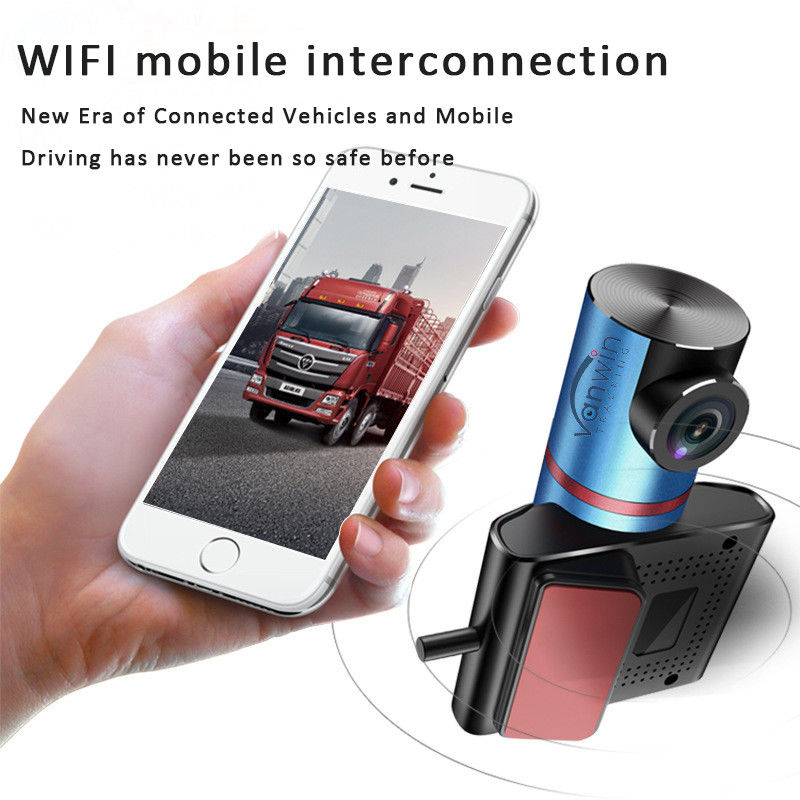

3.WiFi connectivity: Supports WiFi connection, facilitating real-time monitoring
and image transmission, and keeping track of vehicle dynamics at any time.
4.Intelligent monitoring: High definition cameras capture every detail clearly,
providing strong support for taxi operations.
High definition night vision taxi surveillance camera parameters:
| Development Specification For High Definition Driving Recorder | |||
| product name | 1080+720 dash cam | ||
| Product model | VW-Z-CA8 | ||
| Product application | Driving video recording, playback and display output, sports video recording, home high-definition camera. | ||
| Product specifications | master chip | Sigmatar8336 | |
| image sensor | GC2053 Sensor | ||
| ROM | 64Mb SPI FLASH | ||
| RAM | 2GBit DDRIII RAM | ||
| display | No screen | ||
| WIFI | RTL8189 | ||
| camera lens | F/NO 1.60 FOV(D)136 FOV(H)115 FOV(V)61 | ||
| GPS | Dedicated GPS module (optional) | ||
| Product features. | Recording format | The video encoding is H.264, H.265, and the file format MP4 supports custom defined TS format | |
| Video recording triggering method | Power on trigger, G-Sensor vibration trigger start | ||
| Recording mode | Automatic recording upon power on | ||
| Video recording duration selection | Close, 1 minute, 2 minutes, 3 minutes, 5 minutes, 10 minutes | ||
| Video resolution | Front 1920 * 1080 P25 | ||
| Rear 1080 * 720 P25 | |||
| screen mode | Just like display and just like video playback. | ||
| focus range | 1m - infinite distance. | ||
| WIFI | Point to point APP wireless connection | ||
| Display screen operation | Turn off for 1 minute, 3 minutes, 5 minutes, and 10 minutes | ||
| Photo format | JPG. | ||
| 5376*4032 (16M) | |||
| 4032×3024 (12M) | |||
| 3648×2736 (10M) | |||
| 3264×2448 (8M) | |||
| Image effect settings | Exposure compensation, white balance. | ||
| G-Sensor function | G-Sensor vibration triggers automatic power on recording, and locks encrypted files for saving before automatically shutting down. | ||
| Start event recording and save the current file based on the duration of the recording file. | |||
| The file saved under the G-Sensor event will not be deleted | |||
| display | Normal image output | ||
| file store | External TF card storage, supporting up to 256GB TF card storage | ||
| Video or photo file time watermark information can be optionally turned on/off | |||
| output | ///// | ||
| High definition screen with high resolution audio and video output. | |||
| speaker | Built in speaker. | ||
| microphone | Built in microphone for recording. | ||
| Power outage delay shutdown | Default 10S | ||
| power supply | External car mounted DC5V-DC12V (auto start triggers recorder to automatically start recording, auto stop triggers recorder to stop recording and shut down) | ||
| Indicate status | SD card holder | Mini TF Card | |
| pilot lamp | The standby blue light is always on, the video blue light is flashing, the red light for connecting to WIFI is flashing, and the red light for not connecting to WIFI is always on | ||
| Power on/off logo | Customers can customize themselves. | ||
| Power port | working voltage | USB port DC12V | |
| static current | 200uA | ||
| operation temperature | operation temperature | -20℃－－+70℃ | |
| storage temperature | storage temperature | -30℃－－+85℃ | |
| < | |||
Our mission as a car surveillance camera factory is:
1. A high-tech industry specializing in the research, development, production, and sales of vehicle mounted video surveillance systems such as 4ch/6ch/8ch, with AI, 5G, GPS, SD card, HDD, mobile DVR tracking, ADAS, DMS, BSD, and various customized solutions for 16 years
2. Ensure the safety of drivers, vehicles, passengers, and households, and use our best products and services to benefit humanity.
3. Complete solution:
We provide various complete safety solutions for automobiles and other vehicles
Buses, coaches, trucks, taxis, agricultural machinery, boats, police cars, ambulances, etc
FAQ:
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
