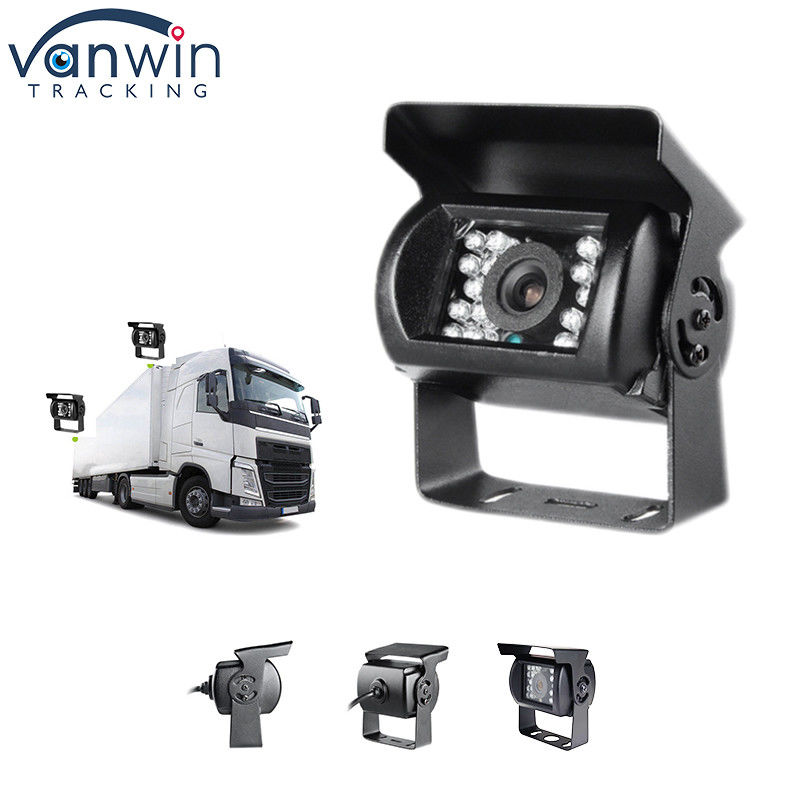

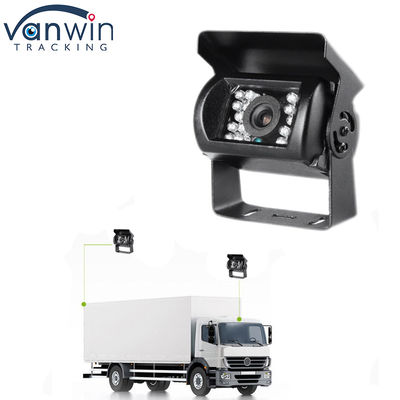

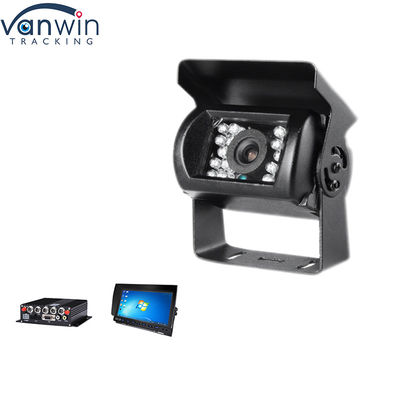

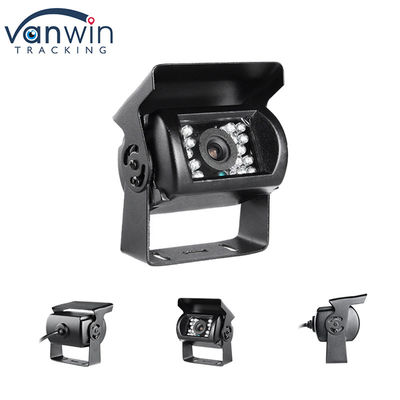

Waterproof HD 1080P Vehicle Camera IP68 H.265 Mini Truck Video Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Image Sensor: | 1/3" Sharp Color CCD | Waterproof: | IP67/IP68 |
|---|---|---|---|
| Noise Reduction: | 3D | Working Temperature: | -20°C~+70°C |
| Len Angle: | 170 Degrees | Resolution: | 1920 (H)×1080(V) |
| Lens: | 2.8mm, 3.6mm, 6.0mm | Certification: | CE, FCC, RoHS |
| IR Lights: | 24pcs | IR Distance: | 5~10M |
| Highlight: | IP68 Vehicle Camera,Waterproof Vehicle Camera,Mini Truck Vehicle Camera |
||
Product Description
Waterproof HD 1080P Vehicle Camera IP68 H.265 Mini Truck Bus Surveillance Video Camera
Main Specifications
| Image Sensor | 1/3" Sharp Color CCD |
| Horizontal Resolution | 600TV lines |
| TV System | PAL/NTSC |
| Effective Pixels |
PAL:752(H) x 582(V) NTSC: 768(H) x 582(V) |
| Minimum Illumination | Color 0.001Lux;IR ON 0 Lux |
| S/N Ratio | ≥60dB(AGC OFF) |
| DAY&NIGHT MODE | COLOR MODE/AUTO MODE/B&W MODE |
| Auto Gain Control | AUTO/MANUAL,8 Value settings |
| Back Light Comp | Back light compensation, high light suppression |
| White Balance | Multi- mode selection |
| Noise Reduction | 3D |
| WDR | High/Middle/Low |
| Lens | 2.8MM |
| Electronic shutter | AUTO/1/50(1/60)-1(100,000Sec) |
| Video Out | 1.0V p-p 75, BNC connector |
| Control mode | OSD manual,support 8 languages |
| Synchronization System | Internal |
| Scanning System | 2:1 Interlaced |
| PRIVACY | 8 areas,freely set up position,size and 8 colors |
| Motion Detection | Grid tracking,4 areas,freely set up positions and size |
| IR LEDs | 18PCS |
| IR distance | 5~10M |
| Waterproof level | IP67 |
| Working temperature | -20°C~+70°C |
| Power supply | DC12V±10% |
| Power consumption | ≤3W |
| Dimension | 72*50*58mm |
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
