IP69K AHD 1080P Vandalproof metal-cased Bus Surveillance Camera for outdoor or indoor monitoring
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW360 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month , Mini Outdoor Waterproof AHD Camera Video Surveillance Bus Mount with IR Lights |
|
Detail Information |
|||
| Product Name: | AHD 1080P Vandalproof Metal-cased Bus Surveillance Camera | Image Sensor: | Analog / AHD |
|---|---|---|---|
| TV System: | PAL Or NTSC | Power: | DC12 Or 24V |
| Night Vision: | Yes | Lens Angle: | 130 Degree Wide Angle |
| Application: | Bus Truck | Working In Water: | IP69K |
| Installation: | Easy Installation On Ceiling Or Wall, Surface Or Flush Mount. | Material: | Metal |
| Color: | Black | ||
| Highlight: | 1080P Bus Surveillance Camera,IP69K Bus Surveillance Camera,Vandalproof Bus Surveillance Camera |
||
Product Description
IP69K AHD 1080P Vandalproof metal-cased Bus Surveillance Camera for outdoor or indoor monitoring
Specification:
| Technical Parameters | |
| Image sensor | 1/3" CMOS |
| Horizontal resolution | 800TV Line |
| TV system | PAL/NTSC |
| Effective pixel | 960(H)*576(V) |
| Minimum illumination | Color 0.1Lux @ (AGC ON) |
| S/N ratio | ≥52dB |
| Day/Night mode | Color |
| Auto Gain Control | AUTO |
| Backlight compensation | AUTO |
| White balance | AUTO |
| Scanning mode | Interlaced scanning |
| Electronic shutter | AUTO/1/50(1/60)-1(100,000Sec) |
| Video output | CVBS 1.0V p-p Composite Output 75ohm |
| Viewing angle | 120°/150° |
| IR leds Qty | No LEDs |
| IR distance | ﹨ |
| Waterproof grade | IP69K |
| Operating temp | -20°C~+70°C |
| Power supply | DC12V±10% |
| Power consumption | ≤1W |

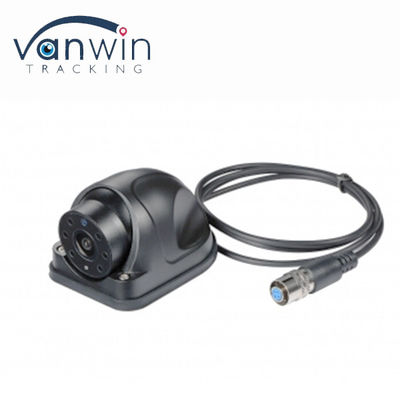

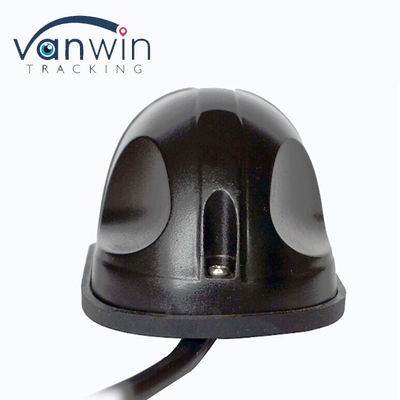

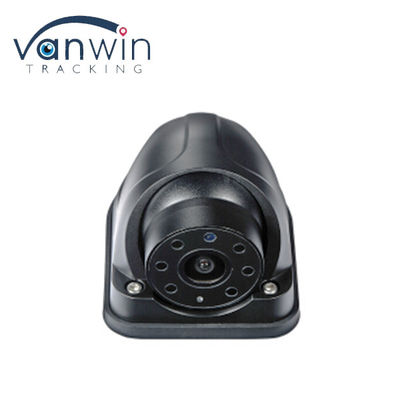

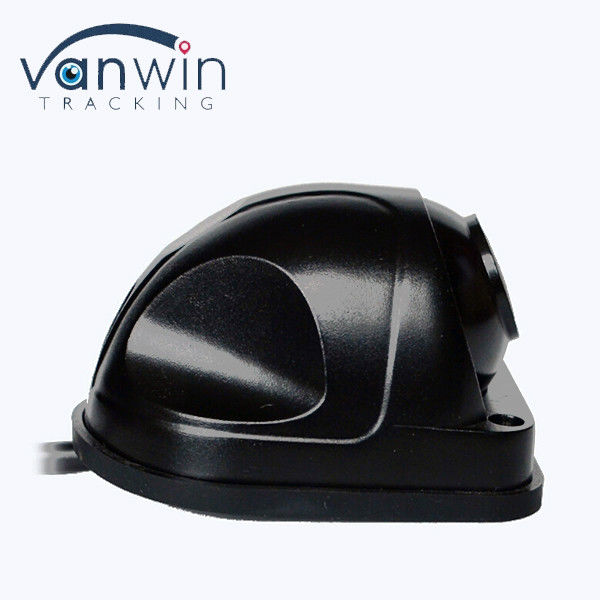

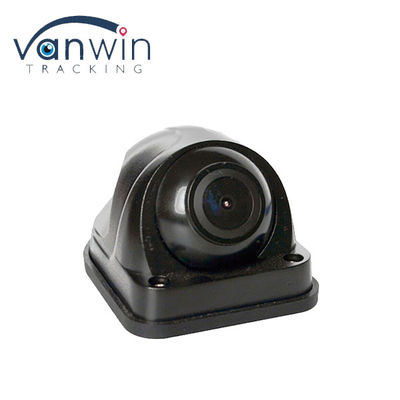

Product Pictures
Installation Pictures
