4 channel 8 channel AI 4G/5G MDVR fleet management system
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9024 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; BUS CCTV System MDVR for taxi police car truck G-Sensor GPS WIFI 3G 4CH HDD / SD Card Recorder |
|
Detail Information |
|||
| Power Name: | 3G 4G GPS WiFi G-sensor Optional 4CH SD CARD MOBILE DVR | Storage Capacity: | HDD+SD , Max 4TB+ 512GB |
|---|---|---|---|
| Functions: | 5G 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 4CH Alarm Input, Lan Port | Software Support: | CMSV6 And Our Private Platform |
| Accessories: | SD,Cameras, Extension Cables, Monitor, Sound Pik-up | Network: | 3G, 4G LTE 5G |
| Video Compression: | H.264/H.265 | Product Type: | 4 Channel 8 Channel AI 4G5G MDVR Fleet Management System |
| AI Feature: | DSM ADAS BSD | ||
| Highlight: | 8 channel AI MDVR,4 channel 8 channel AI MDVR,5G MDVR fleet management system |
||
Product Description
3G 4G GPS WiFi G-sensor optional 4CH SD HDD Mobile DVR Solutions
Product Feature
1. H.264/H.265 hard compression mode, supporting 4/8 real-time 1080P, D1720P, 1080P high-definition adaptive input; Multiple modes can be mixed and combined in any way.
2. 4CH expandable 4AHD+4IPC; 8CH expandable 8AHD+4IPC;
3. 2 video outputs (1 CVBS video AV output, 1 VGA output);
4. Advanced bare disk+pre partitioned storage technology solves the problem of easy damage caused by uneven disk writing, the problem of file fragmentation caused by repeated erasing, the problem of data loss caused by storage file system crashes, inability to find storage, and file garbled characters, and the problem of data loss caused by time lapse, ensuring data integrity and effectiveness. The data is stored in a dedicated manner to solve the problem of data confidentiality;
5. 12V-36V adaptive wide voltage input, ultra-low power consumption design;
6. Support UPS technology, the machine can work for 5-10 seconds in case of abnormal power outage, ensuring that data is not damaged and in case of emergencies, the entire event process can be saved in a timely manner;
7. SD card+hard drive storage: SD card supports up to 512GB, hard drive supports mechanical or solid-state drives, and supports up to 4TB.
8. Support multiple storage strategies such as multi disk circular storage, backup storage for disk loss, and small stream image storage; SD card can be used as a mirror for recording, recording together with the hard drive to achieve dual recording, ensuring the integrity of the recording and ensuring foolproof performance.
9. Support USB interface, backup data, and device upgrade;
10. Support GPS/BD/G-Sensor module expansion; Remote monitoring (real-time video, monitoring, intercom, broadcasting, video query, playback, download) can be achieved through 3G/4G/5G/WIFI;
11. Support JT808 and JT1078 standard protocols; Support remote configuration/control of devices;
12. Support pan tilt control; Support text scheduling and distribution function;
13. Expandable fuel level sensor, temperature sensor, card reader, LED advertising screen, OBD, etc;
14. Support remote monitoring and management through mobile phones; Support multi screen display mode.
15. High reliability aviation head connector, cost-effective, stable and reliable.
16. Can add extensions: fatigue driving warning DSM+road driving warning ADAS+blind spot warning BSD function

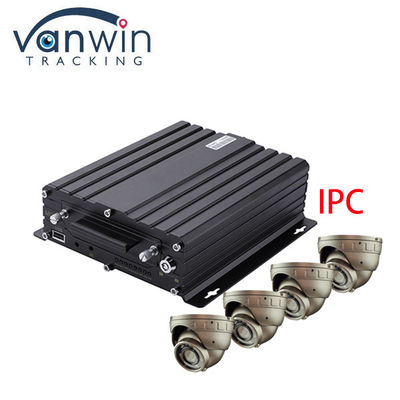

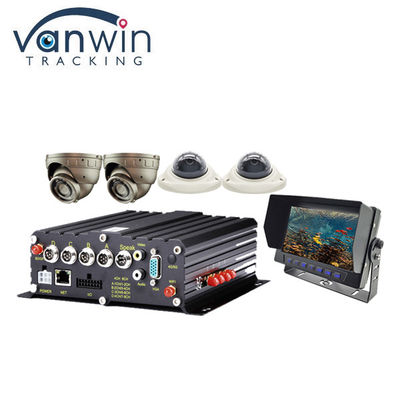

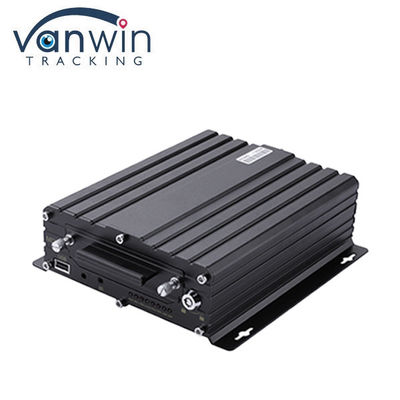

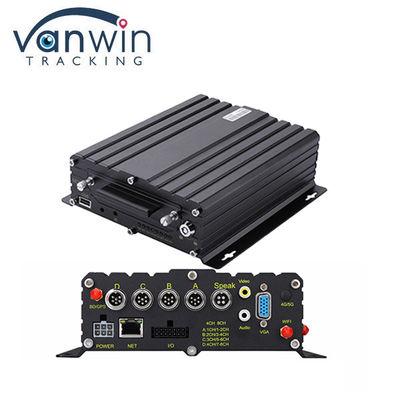

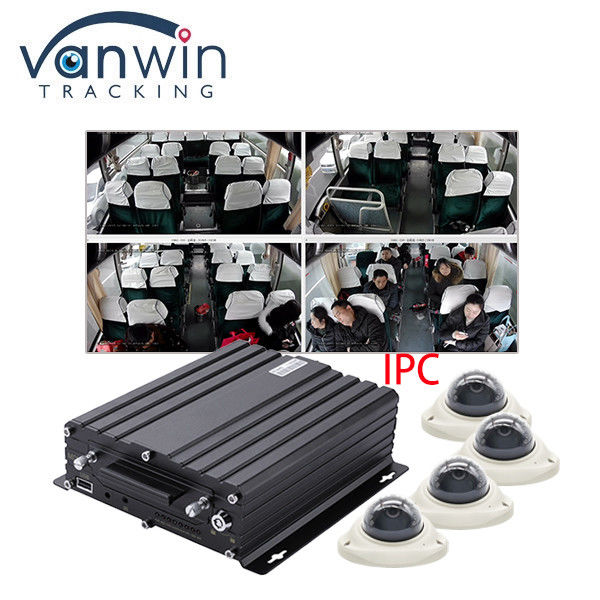

Product Picture
Application and installation
