ADAS HD Night Vision Parking Monitoring Mobile Internet WIFI Hidden 360 ° 1 Inch Driving Recorder
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-Z-A2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Processor: | TX81X | Image Sensor: | 101AP |
|---|---|---|---|
| Camera Lens: | 2G2P (14 Heads) | Aperture: | F2.0 |
| Diagonal: | 120° | Maximum Video Resolution: | 1920*1080 |
| Power Interface: | USB MINI Dock | RTC Power Supply: | 3V-2F Farad Capacitor |
| Highlight: | WIFI Hidden Driving Recorder,ADAS Driving Recorder,360 ° Driving Recorder |
||
Product Description

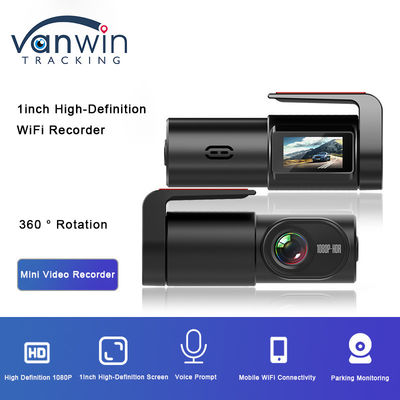

ADAS 360° Degree 1-inch Screen Mobile Phone USB+WIFI Driving Recorder High-definition Night Vision Parking Monitoring Mobile Internet WIFI Hidden
• The front and cab cameras are integrated for easy installation and wiring
• Angle can be adjusted freely
• The cab is equipped with 6 infrared lights with an illumination distance of 3-4 meters and audio
• 3D digital noise reduction technology, adding noise reduction processing to the original signal, at night Images are cleaner and brighter
• Car-grade digital video processor, low power consumption, high stable performance
• Installed on windshield.
| Wi Fi Recorder Specifications | ||
| hard piece ginseng number |
Processor: | TX81X |
| Image sensor: | 101AP | |
| camera lens: | 2G2P (14 heads) | |
| Aperture: | F2.0 | |
| Diagonal: | 120° | |
| Maximum video resolution: | 1920*1080 | |
| Encoding type: | Mjpeg | |
| Video encoding format: | AVI | |
| Effective pixels: | 3 million pixels | |
| Screen parameters | 0.96-inch TFT LED full-color screen | |
| Photo format: | JPEG | |
| Collision sensor: | Three axis acceleration sensor (optional) | |
| Key: | 1- Function button | |
| Storage: | TF card (Class 10 or above, maximum support 128GB) | |
| Working voltage: | 5V/12V (supports ACC detection time-lapse recording) | |
| Working current: | 5V-200mA(max) | |
| Static current: | 1mA以下 | |
| Storage temperature (℃): | (-30℃-80℃) | |
| Operating temperature (℃): | (-15℃-75℃) | |
| Operating humidity (℃): | 15%-60%RH | |
| power interface | USB MINI dock | |
| RTC power supply: | 3V-2F Farad Capacitor | |
| Software functions | Record mode: | Loop recording (1/2/3 minutes optional) |
| Power off video saving: | Support (power-off video can be saved and played normally) | |
| Screen display content: | Date/Time/Status/Real time Preview Screen Button Switching Control Display | |
| APP support | 6-frame exploration/optional car companion | |
Mobile DVR Notes:
(1)Make sure the power is off before installation.
(2)Check and confirm the availability of right power supply. Wrong voltage will inflict
damage to component(s) in camera.
(3)Do not use camera in overheated and humid environment. Keep a good
ventilation so as to reduce fire and outrage.
(4)Only the professional technicians are entitled for installation and repair. By no
means, this camera shall not be repaired or dismantled on customer's own.
Manufacturer holds no responsibility in case of unauthorized repair, and use of
uncertified spare parts.
(5 )If abnormal conditions are found,please turn off the power supply and contact us.
FQA:
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
