3G 4G GPS WiFi G-sensor optional 4CH SD HDD Mobile DVR Solutions
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9204 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; BUS CCTV System MDVR for taxi police car truck G-Sensor GPS WIFI 3G 4CH HDD / SD Card Recorder |
|
Detail Information |
|||
| Power Name: | 3G 4G GPS WiFi G-sensor Optional 4CH SD CARD MOBILE DVR | Storage Capacity: | HDD+SD , Max 1TB+ 256GB |
|---|---|---|---|
| Functions: | 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 4CH Alarm Input, Lan Port | Software Support: | CMSV6 And Our Private Platform |
| Accessories: | SD,Cameras, Extension Cables, Monitor, Sound Pik-up | Network: | 3G, 4G LTE |
| Video Compression: | H.264/H.265 | ||
| Highlight: | AHD 720P MOBILE DVR,4CH MOBILE DVR,SD Card Mobile DVR |
||
Product Description

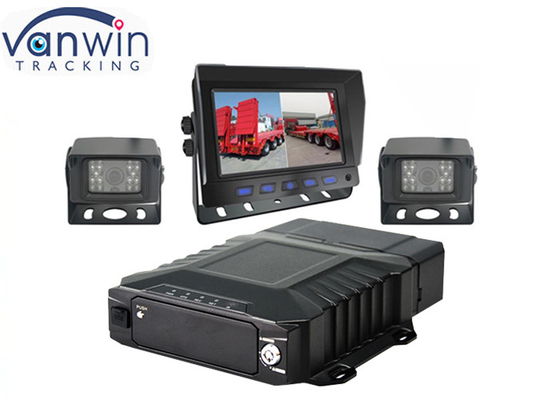

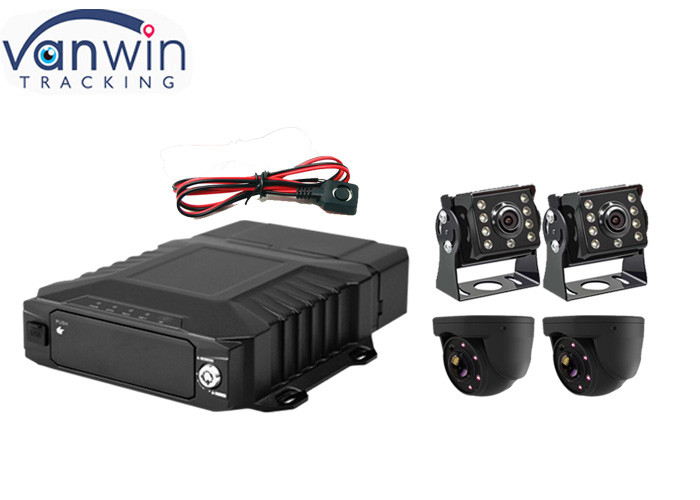

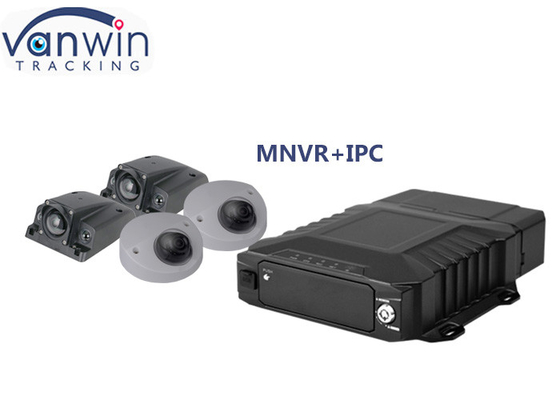

3G 4G GPS WiFi G-sensor optional 4CH SD HDD Mobile DVR Solutions
Product Introduction
VW9204 is a cost-effective and high extendibility Mobile Digital Video Recrder(MDVR), developed especially for vehicle monitoring and remote video surveillance. It adopts high speed processor and embedded Linux system, combined with the most advanced technology of H.265 coding/decoding, 3G/4G network, GPS/BD and WIFI. It supports 1080p,720p,D1,resolution video recording, vehicle driving record and video remote uploading. With the central software can do central remote monitoring based on alarm linkage, vehicle intelligent dispatch management and playback analysis based on central database. This device is competitive in anti-vibration, more rich function, high reliability, concise appearance and simple to deploy.
Key Features
1. Industrial-grade design with special vehicle port for reliable working on harsh environment.
2. Wide voltage support over-load ,short circuit ,reverse connect protection.
3. UPS power for continual work.
4. Support hard disk 2TB+ SD card 256G for record storage.
5. 4G/WIFI transmit; multiple grade image quality transmitting option.
6. GPS/BD/GLONASS global positioning.

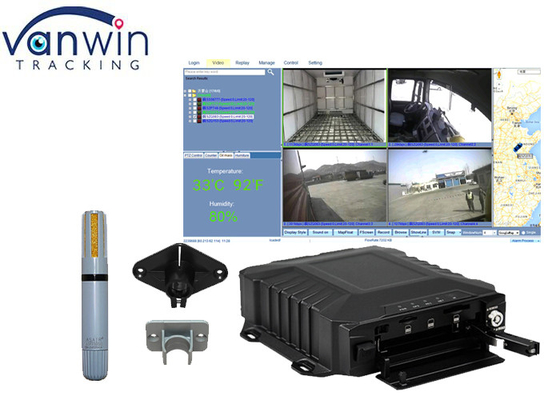

7. Powerful software platform including remote preview, playback, broadcast, talk and more.
8. IP communication.
9. PTT group talk function.
10. Support multiple serial port extension.
11. Could be built-in ADAS.

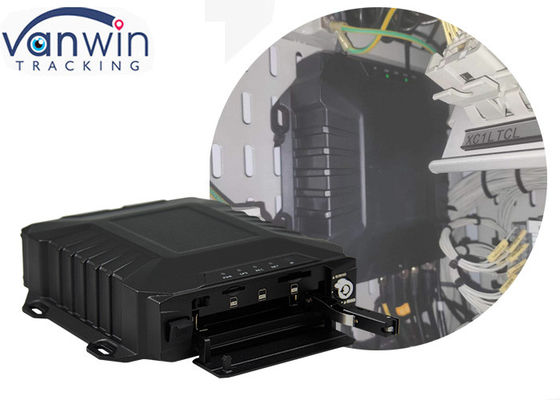

Production Installation and Application
Vehicle Surveillance Solution
● Helps prevent injury to personnel and members of the public
● Can reduce potential legal claims caused by damage and injury
● Locate and communicate with the staff anytime anywhere
● Staff can ask for help anytime when it is needed
● Monitor and supervise the staff
● Improve working efficiency
● Big data analysis can help collect driver/vehicle/refuse data
If you're interested in the system above, please be free to get the high-quality solution and system with us.
