Vehicle Speed Limit Devices Speed Governor Devices For Zimbabwe Trucks
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS/IEC/ECE |
| Model Number: | VSL003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 peice |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plastic foam packing |
| Delivery Time: | 1-2 days for samples,5~7 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5000 pcs per day |
|
Detail Information |
|||
| Type: | Vehicle Electronic Control Unit Speed Limit Devices | Speed Range: | 0-120KMH |
|---|---|---|---|
| Speed Limit Deviation: | ± 1km/h | Operating Voltage Range: | 6.8-60V |
| Rated Power Consumptio: | 2W | GSM Module: | GSM Module:SIM800 /SIM5320(3G) Band:850/1900 850/2100 900/2100MHz(3G) |
| Temperature Resistance: | + 85℃ | Speed Signal Source: | GPS And Speed Wire |
| GPS Module: | GPS Chip Set: SiRF Star III Frequency: L1, 1575.42 MHz | ||
| Highlight: | Vehicle Speed Limit Devices 2A,1km/h Speed Governor Devices |
||
Product Description
Vehicle electronic control unit Speed Limit Devices speed governor devices for Zimbabwe
Parameter:
| Size | 137*75*29mm |
| Working Voltage | DC:6.8~60V |
| Input Fuse | 2A |
Working Temperature | |
 Humidity | 10% to 90% |
| Input I/O | 6 I/O input/output Port |
1 detect speed from odometer 1 port use to check the engine ( ACC check) 1 port use to SOS 1 analog Input port( Fuel sensor) 1 Output port ( Car engine control ) 1 Output port ( speed limiter ) | |
USB |
1st--USB printer |
| Microphone | 3.5mm single track |
Current | Not working Current 16mA Current of opening infrared of Camera at night :100~200mA Charging current: Max<500mA |
| Battery | Lithium battery :400mA( working time is about 3.5 hours) |

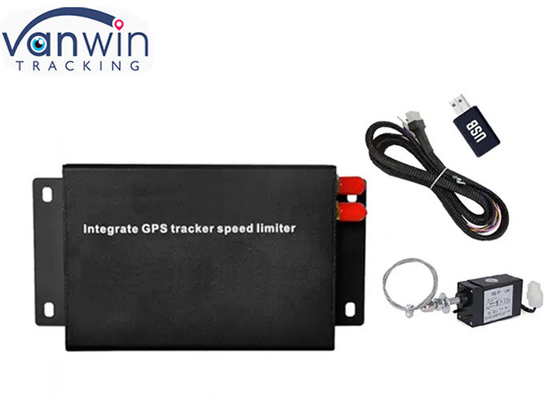

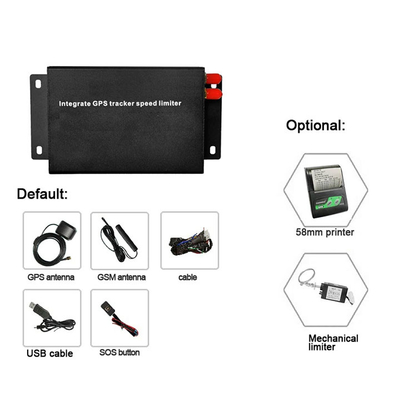

Accessories | Main unit, 10PIN Connecting cable ,GPS antenna ,GSM antenna, 2 relays, SOS button, Microphone, printer Optional: USB cable printer |
Feature:
1. Real time uploads location information via time/distance interval
2. Image transmit (take photos by digital camera)
3. Real-time Positioning & Tracking by SMS or internet
4. SOS Function & Power-cut Alert
5. Audio Monitoring
6. Geo-fence & Over Speed Alert
7. Fuel level Monitoring
8. Remote controlling oil & circuit by SMS or internet
9. ACC/Door/Trunk/bonnet/shock Alert
10. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.)
11. Built-in backup battery ,low battery alert ,unauthorized dismantle alert
12. GPS & A-GPS (LBS-location based service)
13. Fuel sensors ,Temperature sensor, Flash memory (optional)
14.Support google map
15.Show location directly on mobile phone with HTTP google map link
16.Absolute street address request by SMS.
Connection way:

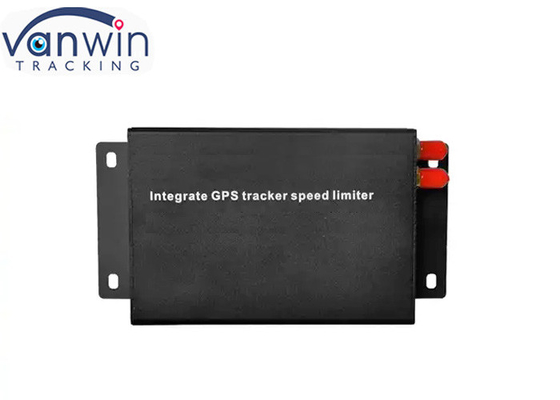

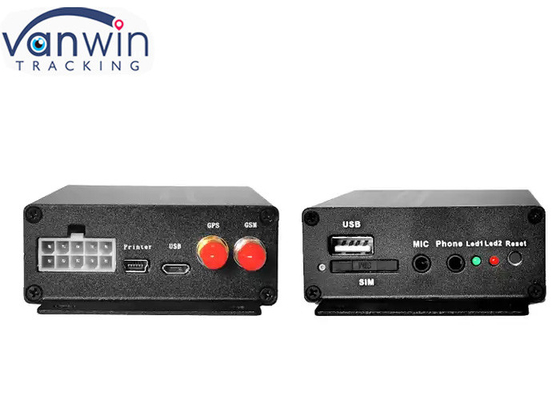

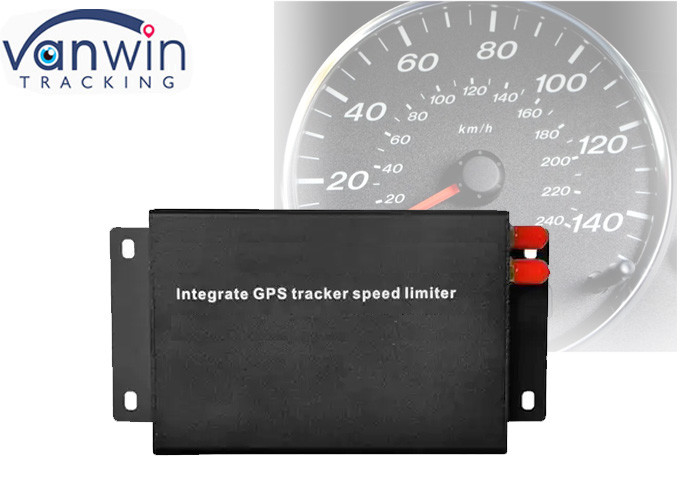

Product Photos:
