4 Channel 1080P Truck Dash Cam Recorder Fleet Gps Tracking 4G Dash Cam With ADAS DMS
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-DVR08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; 4 Channel 1080P Truck Dash Cam Fleet Gps Tracking 4G Dash Cam with ADAS DMS |
|
Detail Information |
|||
| Video Format: | H.264 | WIFI Module: | Support |
|---|---|---|---|
| Resolution: | 1080P, 720\1080P | AV Inputs: | 2CH/4CH |
| ADAS: | Support | DMS: | Support |
| 4G: | Support | GPS Tracking: | Google Map |
| Platform: | CMSV6 | GPS: | Support External GPS |
| View Angle: | 120 Degree Wide Angle | Video Input: | Built In 2ch,external 2ch 720P Camera |
| Storage: | Support TF Card Max. 256GB (not Included) | Type: | Video Recorder, DUAL LENS, DASH CAM |
| Application: | Bus, Truck, Taxi, Car, Mining Truck Fleets | Function: | NIGHT VISION, Remote Control, FULL COLOR, G-Sensor... |
| Highlight: | 1080P Truck Dash Cam Recorder,4Channel Dash Cam Recorder |
||
Product Description
4 Channel 1080P Truck Dash Cam Recorder Fleet Gps Tracking 4G Dash Cam with ADAS DMS

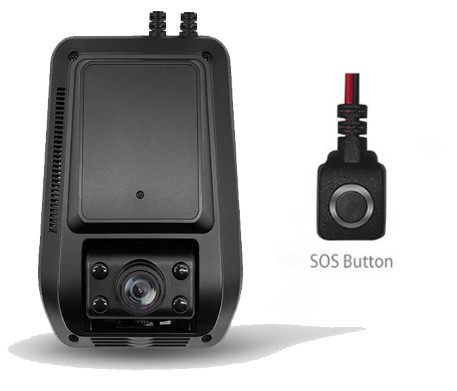

The 4G dash cam monitors the dynamics of the vehicle in front of the vehicle through the host, if you encounter an unexpected accident you can call for help with one key (press the SOS alarm button), the management personnel through the CMSV6 platform for supervision, you can view the situation inside and outside the car in real time, the location of the vehicle, a quick response, and at the same time, the platform can also provide operational reports, you can reduce the large number of cumbersome recording data.
4G Dash Cam Main Specifications
|
Item Parameter
|
|
|
Operation Language
|
Chinese/English
|
|
Video Input Resolution
|
Front 1080P, Rear 1080P
|
|
Video standard
|
PAL, NTSC
|
|
Video compression format
|
H.264/H.265 compression format
|
|
Video resolution
|
Support 1080P, 720P, D1 optional
|
|
Recording mode
|
Default automatic recording, support ignition recording, alarm recording, etc
|
|
Audio input
|
1 channel audio, built-in MIC
|
|
Audio output
|
1 channel, built-in amplifier, built-in speakers
|
|
Compression format
|
G.711A compression format
|
|
Recording mode
|
Synchronized recording of sound and video
|
|
IO input
|
1 channel emergency alarm button (IO input); 1 channel IO output
(low level); |
|
Expansion interface
|
1 RS232
|
|
Wireless transmission
|
Built-in 4G wireless transmission function,
TDD-LTE, FDD-LTE (support CAT1 or CAT4);
|
|
WIFI
|
built-in wireless wifi 802.11b/g/n
|
|
GPS Positioning
|
Support GPS / BD (external Gmouse, TTL level interface)
|
|
Sensor
|
Built-in 3-axis acceleration sensor
|
|
Storage
|
Support tf card,Max support 512G
|
|
USB
|
Support
|
|
SIM card interface
|
Micro SIM card interface
|
|
ADAS
|
Lane departure, pedestrian, distance detection, etc.
|
|
DSM
|
Fatigue Driving Detection, Smoking, Shading Unsafe Driving Behavior Habit Detection
|
|
Power management
|
Adaptive wide power input, with overload, undervoltage, short circuit, reverse connection and other protection functions; support for timer on/off, delayed shutdown function.
|
|
Input Voltage
|
DC:+9V ~ +36V
|
|
Dimension
|
120mm*77mm*55mm
|
|
Net weight
|
240g
|
4g Dash Cam Main Features
1. H.264/H.265 compression format;
2. front and rear dual lens 1080P HD camera;
3.Support 1 512G capacity TF card storage;
4.Comes with 1 ch IO input, 1 ch low level alarm output;
5.Supports 232 serial port;
6.Supports WIFI hotsport, 4G, GPS and other functions;
7.Support APP, PC software preview video and parameter configuration;
8.Optional AI intelligent algorithm: ADAS, DMS;
Products Details

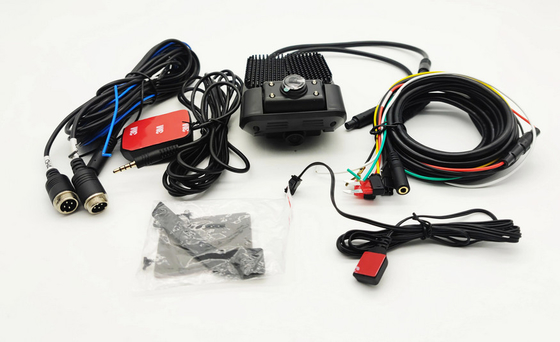

This is a 2ch Car dvr, which can be expanded to 4ch. Need to place an order for a one-to-two expansion line.
FQA
1. Do you provide the free CMS?
Yes, is free of charge. We will provide you the authorized code after you buy our equipment.
2. What is the minimum requirement to run this software?
CPU 2.5G four core; Memory 8GB; HDD 1TB;
3. Which OS can run this software?
server2002 / server2008 / Windows xp / Windows 7 / Windows 10, both 32bit and 64bit.
4. After we build our own server, can the IP of units be changed remotely?
Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.
Any further questions, please don't hesitate to contact us, we are very pleased to help you.
