Vehicle Ahd 720p 1080p Rearview Bus Surveillance Camera Mdvr Video Monitoring
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-345 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; |
|
Detail Information |
|||
| Type: | Vehicle AHD 720P 1080p Truck Rearview Camera | TV System: | PAL Or NTSC |
|---|---|---|---|
| Test Time: | Over 48 Hours | Chip Mode: | AHD Camera/CMOS /SONY CCD |
| Material: | Metal Housing | View Angel: | 120°-170° |
| Resolution: | 720P/1080P Optional | Application: | Outdoor Installation For Bus Truck Van |
| Highlight: | 720p rear view cameras for trucks,1080p rearview camera for truck,ahd rearview camera for truck |
||
Product Description
Vehicle AHD 720P 1080p truck rearview camera for outdoor MDVR video monitoring
Specification
| Sensor | CMOS | ||
| Resolution | 733(H) x 493(V) | 1080(H) x 720(V) | 1288(H) x 968(V) |
| TV line | 420 TVL | 800 TVL | 1000 TVL |
| Min illumination | 0.1 Lux | 0.1 Lux | 0.01 Lux |
| Waterproof | IP68 | IP68 | IP68 |
| Horizental View Angle | 110º | 110º~140º (Optonal) | 110º ~ 140º (Optional) |
| Diagonal View Angle | 170º | 170º~185º (Optional) | 170º ~ 185º (Optional) |
| Night vision distance | 30ft | 30ft | 30ft |
| Power voltage | 12V | 12V | 12V |
| S/N ratio | 45dB | 61.8 [dB] | - |
| Dynamic Range | 60dB | 43.3[dB] | 74dB |
| Operation Temp | -20℃ ~ +70℃ | -20℃ ~ +70℃ | -30℃~+85℃ |
| Reverse guide line | Optional | ||
| Warranty | 18 Months | ||
| MOQ | 1 PCS | ||

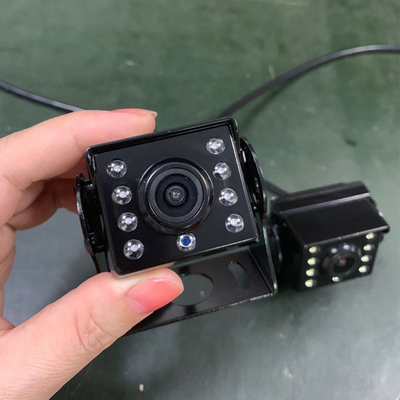

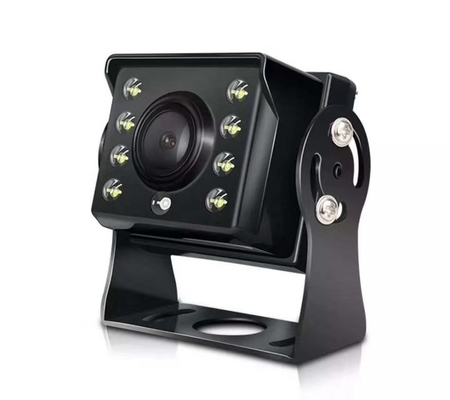

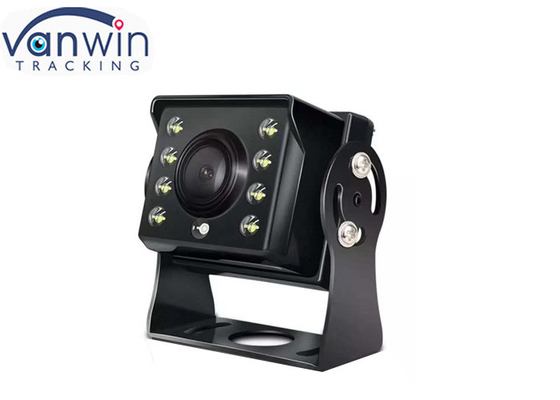

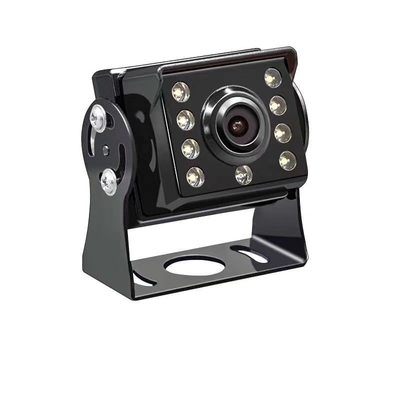

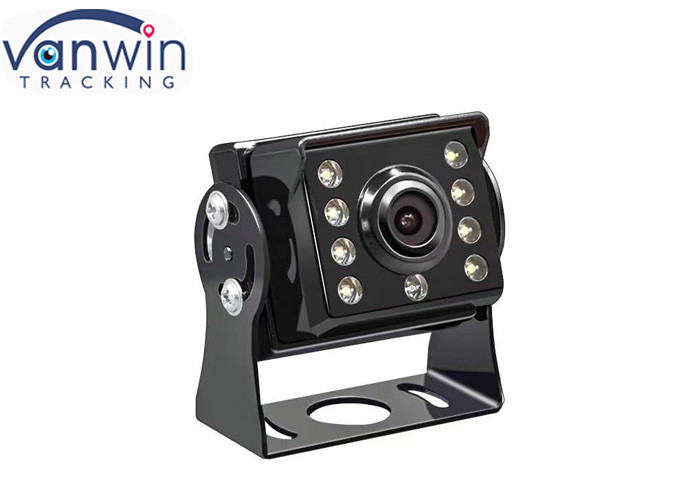

Product Pictures:
Want to Know more details about this product
