IP67 Truck Capacitor Fuel Level sensor oil Sensor DVR Accessories
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-N08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | it's as the accessory to connect MDVR with camera |
| Delivery Time: | 2-3 days for samples, 5-7 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Collection Principle: | Capacitance | Size: | 0.1M-1.5M Depth For Fuel Tank |
|---|---|---|---|
| Electrical Parameters: | Input DC:4—70V | Power Consumption: | 0.13W/5V, 0.19W/12V, 0.38W/24V |
| Signal Output: | Voltage Output:0—5V/digital Output/ Current Output/Analog Resistant Output | Detect Liquid Type: | Diesel, Bio Diesel, Kerosene, Gasoline, Etc. |
| Material: | Aluminum Alloy | Protection Class: | IP67 |
| Working Temperature: | -40℃~+85℃ | ||
| Highlight: | IP67 Truck Fuel Sensor,FCC Oil Level Sensor |
||
Product Description

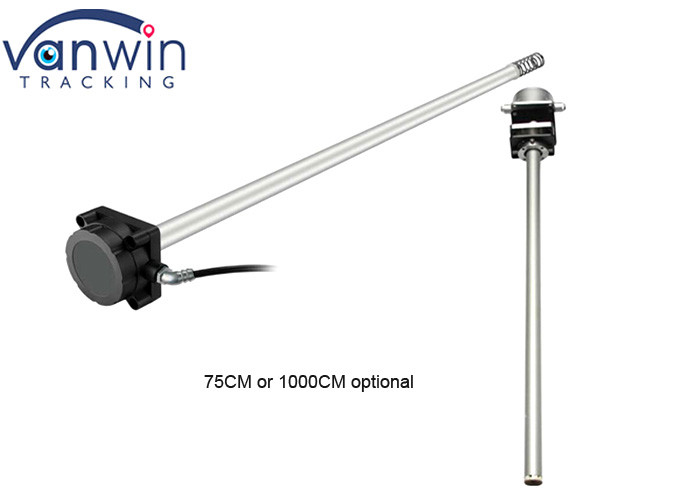

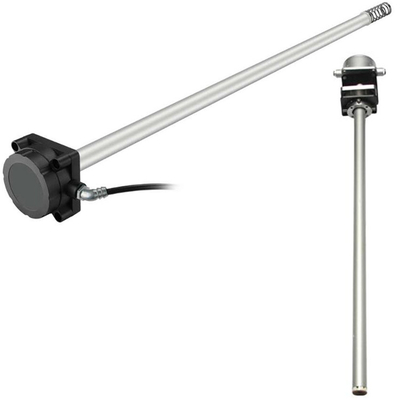

Truck fuel sensor Oil Level Sensor oil quantity monitoring equipment Capacitor fuel detector

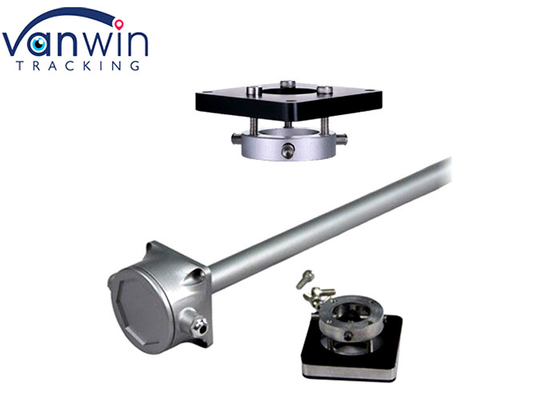

VW-N08 series fuel sensor is independent research and development by Vanwin Tech, which within innovative technologies. It can detect fuel level continuously. And The resolution is less than 1mm. JT606 can be cut the length to fit the height of fuel tank .Simply flanged installation that no need extra screws. Wide voltage input to make sure no voltage limits under any situation.
Features:
1)It can be cut according to the height of fuel tank.
2)Integrated structure without any elastic elements, also support various signal output.
3)Push-button field calibration, it’s very convenient.
4)Wide Power voltage input.
Parameter:
| Item | Performance parameters |
| Collection principle | Capacitance |
| Size |
100mm to 1500mm(minimum can be detected 100mm,maximum can be detected 1500mm) |
|
Electrical parameters |
Input DC:4—70V |
|
Power Consumption |
0.13W/5V, 0.19W/12V, 0.38W/24V |
|
Signal output (can be customized) |
Voltage output:0—5V |
|
Signal output (can be customized) |
Digital output:RS-232 RS-485 |
|
Signal output (can be customized) |
Analog resistant output:10—500Ω |
|
Signal output (can be customized) |
Current output: 4—20mA |
|
Signal output (can be customized) |
Communication baud rate:2400,4800,9600,57600,115200 |
|
Detection of liquid type |
Diesel, bio diesel, kerosene, gasoline, etc. |
|
Use of the environment |
Work temperature:-40℃~+85℃ |
|
Use of the environment |
Save temperature:-40℃~+105℃ |
| Material | Aluminum alloy |
| Protection class | IP67 |

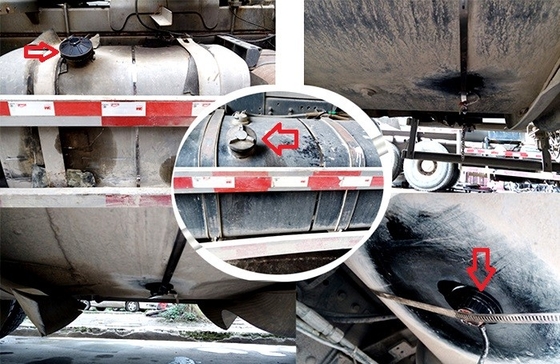

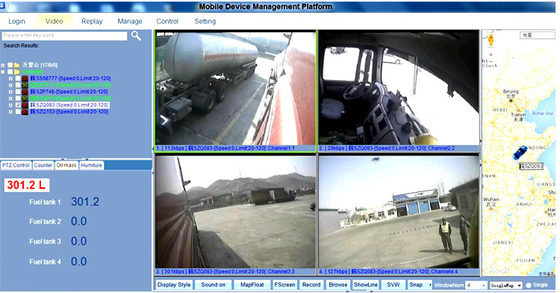

Application
