1080P 4G GPS MDVR Recorder Android 4CH Dual SD Card Dash Cam DVR
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-DVR08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Video Format: | H.264 | WIFI Module: | Support |
|---|---|---|---|
| Resolution: | 1080P, 720\1080P | GPS: | Support External GPS |
| Video Input: | Built In 2ch,external 2ch 720P Camera | Storage: | Support TF Card Max. 256GB (not Included) |
| Type: | Video Recorder, DUAL LENS, DASH CAM | View Angle: | 120 Degree Wide Angle |
| Application: | Bus, Truck, Taxi, Car, Mining Truck Fleets | Function: | NIGHT VISION, Remote Control, FULL COLOR, G-Sensor... |
| Highlight: | Remote Control MDVR Recorder,Android 4CH MDVR Recorder,SD Card Dash Cam DVR |
||
Product Description
4CH Dual SD Card 1080P 4G GPS MDVR Recorder 4G LTE Android GPS Dash cam Dual Full hd camera dvr car
Product Advantages
* Adopt H.264 encoding and decoding, the maximum encoding resolution is 1080P 60 frames;
* Front and rear dual cameras: front lens 1080P, rear lens 720P; 2-channel 720P AHD camera can be expanded externally (with AI algorithm, support 1-channel 720P AHD camera external expansion);
* Support 1 TF card storage, support 256G capacity;
* Support 2-way IO alarm input, support 1 RS232 interface;
* Support WIFI, 4G, GPS and other functions;
* Support mobile APP, client, platform software preview video and parameter configuration;
* Dedicated file system to improve disk read and write efficiency and more stable video recording;
* Optional AI intelligent algorithm, support ADAS, DMS, BSD detection;
This product link only support WIFI STA/AP mode
This is a 2ch Car dvr, which can be expanded to 4ch. Need to place an order for a one-to-two expansion line.
Main Specifications
| Parameters | Specification |
| CPU | ARM Cortex-A7 1.0GHZ |
| Memory | 2GB |
| Outside camera | 2MP sensor,95 Degree.F4.3mm |
| Support wide dynamic WDR | |
| In-car camera | 1MP sensor,115 Degree Wide angle.F2.16mm |
| With infrared night vision, the video is clearly visible in the dark environment in the car | |
| Dual memory card | Support 1*TF card,32GB/64GB/128G/256G |
| Positioning | Beidou/GPS dual-mode high-precision positioning module |
| Gyro | Collision alarm, vibration alarm |
| Speaker and Mic | Build in |
| Video resolution | 1080P/720P/D1 |
| Video format | H264 Compression format |
| File format | Special file system, can export asf file |
| 4G | All domestic Netcom supports China Mobile, China Unicom, telecommunications cards, and IoT cards; |
| Overseas support for global frequency bands； | |
| VCC | powered by 9V-36V |

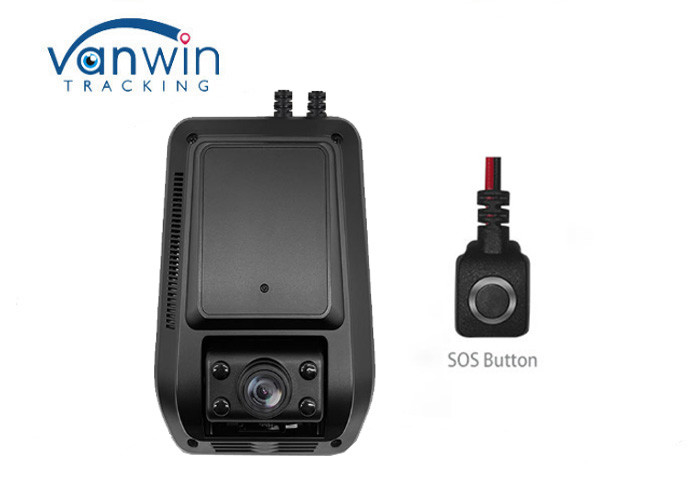

| SOS button | Emergency button, video upload before and after the police |
| External display(optional) | CVBS Interface, video output |
| Serial port | 1xRS232, support extended functions |
| One-key restore settings | Support one-key factory reset function |
| volume(mm) | 120*77*55mm |
| weight | Around 240g±10g |
| Operating temperature | -20℃～+70℃ |
| Relative humidity | ≤93% |
3G Client Monitoring Platform CMSV6
FQA
1. Do you provide the free CMS?
Yes, is free of charge. We will provide you the authorized code after you buy our equipment.
2. What is the minimum requirement to run this software?
CPU 2.5G four core; Memory 8GB; HDD 1TB;
3. Which OS can run this software?
server2002 / server2008 / Windows xp / Windows 7 / Windows 10, both 32bit and 64bit.
4. After we build our own server, can the IP of units be changed remotely?
Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.
Any further questions, please don't hesitate to contact us, we are very pleased to help you.
