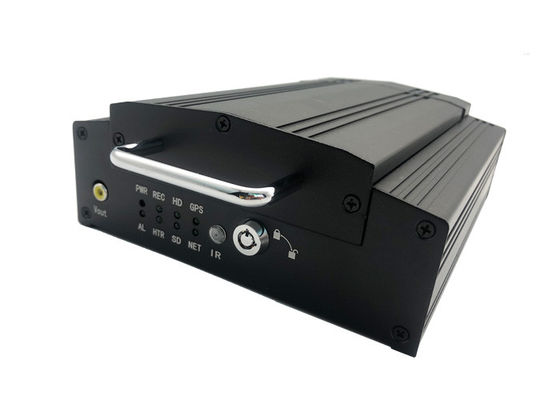

9-32V h.264 4G 3G Mobile DVR CCTV 600Kbps For Vehicles
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW812HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; |
|
Detail Information |
|||
| Storage Capacity: | 2.5" SATA Hard Disk Or SSD，1TB / 2TB | Resolution: | 8CH Full 1080P/720P/D1/CIF |
|---|---|---|---|
| Technology: | The World Class Anti-vibration Tech | Cameras: | Analog / AHD 720P / 960P / 1080P |
| Video Format: | H.264 | USB Port: | Support |
| Network Port: | RJ45 | Warranty: | 16 Months |
| Basic Function: | 8 Cameras Monitoring With 4G Real Time,GPS Tracking, WIFI Download | Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets |
| Highlight: | 32V 4G 3G Mobile DVR,H.264 4G 3G Mobile DVR,600Kbps CCTV Mobile DVR |
||
Product Description
4G Real Time Recording 3G Mobile DVR CCTV for Vehicles Power 9-32V, with Circuit Protection
3G Mobile DVR CCTV system includes:
- One 8CH 1080P HDD MDVR with 3G/4G GPS WIFI for option

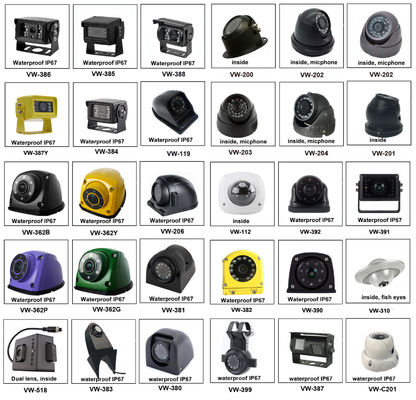

- 6-8 pcs 1080p/960P/720P cameras/ 8 Analog cameras with extension cables
- One Hard disk or SSD
- One Monitor, Sound Pick-up, Talkback device for option
- Canbus for option
- Oil sensor for Option
How does 3G Mobile DVR CCTV work?
The system that records both the inside and outside of your vehicle to prove what really happened in any situation.
The 8 camera device uses 4 regular HD 1080P cameras as well as 4 HD 1080P night/day cameras.
The DVR device is a power managed and wide voltage +8V~+36VDC.
The model is designed for all commercial vehicles, especially those that carry passengers.
3G Mobile DVR CCTV Main Features
| Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection |
| 2TB HDD / SSD ,protect DVR from shock & Dust damage; |
| Exclusive File System protect data completeness; |
| ACC Delay off,can set 3- 255 mins to work; |
| Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s. |
| Support GPS/GLONASS,3G/4G Module Optional,WIFI extend; |
| Support Monitoring,Intercom, PTZ, Alarm,Overspeed,Geo Fence etc through remote control platform; |
| 8CH Alarm inputs(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm; |

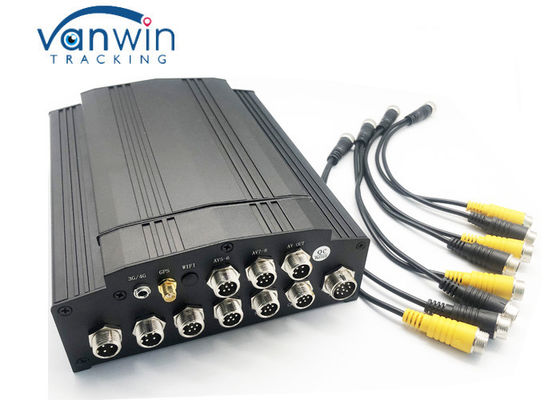

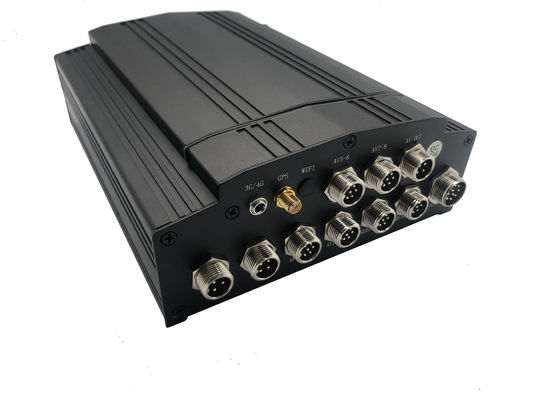

| High level aviation interface,easily installation and better shockproof, more stable;. |
| Easily Smart GUI Interface, saving time in device setting; |
3G Mobile DVR CCTV Main Specifications
| Item | Description | |
| OS | Linux | |
| Graphics Operation Interface | System parameters can be set through external display and remote controller | |
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | |
| Video and Preview | Video Input, Output | 8-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | |
| Video Compression Format | Compression coding. Applying Hisilicon hi-performance processor. | |
| Dual-Stream | Supported | |
| Preview Function | Preview of 1-channle, 8-image stitching, supporting full screen triggered by event and switching of stitched images | |
| Frame Rate | PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel | |
| Resolution | AHD 1080P/ 720P, D1, CIF 8channel | |
| Quality | Grade 1 to grade 5 for selection (descending) | |
| Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection 720P: 2048Kbps~6144Kbps |
|
| Audio | Audio Input, Output | 8-channel input, 1-channel output |
| Compression Format | G.726 coding | |
| Recording | Storage Medium | Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology; |
| File Format/ System | Special file system | |
| Video Strategies | Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
| Video Search | Searching by time, type, storage device and other conditions | |
| Video Playback | Supporting playback on local device, supporting synchronous playback of up to 8 channels and analysis on vehicle information in the files | |
| Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | ||
| Alarm | Alarm Input/ Output | 8-channel on/off signal alarm input, 1-channel on/off signal alarm output |
| Alarm Recording | Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min | |
| Storage Space Alarm | Supporting settings for alarm of storage space | |
| Function Alarm | GPS overspeed alarm, acceleration alarm, motion detection alarm | |
| Communication Ports | RS485,RS232, RJ45 10M/100M self-adaptable network interface | |
| Wireless Transmission (Optional) | Supporting Wi-Fi; | |
| GPS (Optional) | Supporting external GPS | |
| PTZ Control | Supporting PTZ control realized by local; | |
| Parameter Configuration | Supporting parameter configuration functions for mobile DVR coding channel; | |
| G-Sensor | Embedded | |
| System Upgrading | Supporting SD card, hard drive upgrading and remote upgrading | |
| Power Supply and Power Consumption | Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
| Input Voltage | DC:+8V ~ +36V | |
| Output Voltage | +12V@5*0.5A; | |
| Power-off Protection | With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure | |
| Power Consumption | <10W in normal operation; <0.5W in standby mode | |
| Operating Environment | Temperature | Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
| Humidity | 10% to 95% | |
| Dimensions | 160(W) x62(H) x200(D) mm. | |
| Weight | Net: 2200g, Gross: 3500g | |
The working diagram
