Waterproof Mini Camera 8 IR Lights HD 1080P 2.0MP Truck Reverse Camera
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-345 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Truck Reverse Camera | Lens: | 2.1mm/2.8mm/3.6mm |
|---|---|---|---|
| TV System: | PAL Or NTSC | Test Time: | Over 48 Hours |
| Waterproof: | IP68 | IR Lights: | 8pcs |
| Mode: | AHD Camera Or Analog Camera | Advantage: | SMT Factory Plus Strict Production |
| Sensor: | AHD 1080P,1/3" 1.3 Mega Pixels CMOS | Style: | Mini Waterproof Camera |
| Connector: | 4 PIN Connector Or RCA Connector Or BNC | Resolution: | CMOS CCD Analog/720P/960P/1080P Optional |
| Highlight: | 1080P Car Reversing Camera,2.0MP Car Surveillance Camera |
||
Product Description

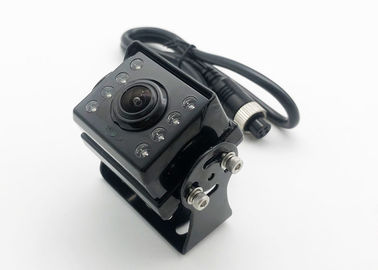

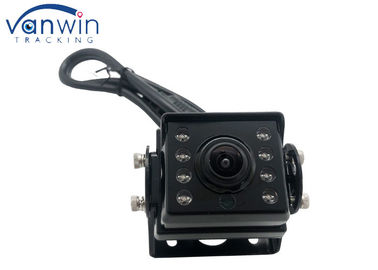

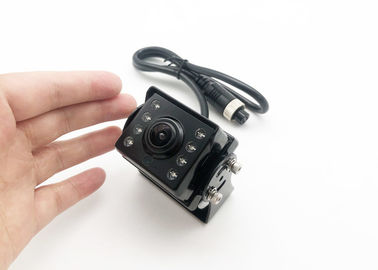

Waterproof Mini Camera 8 IR Lights HD 1080P 2.0MP Truck Reverse Camera
VW-345 with mini size and wide angle is widely used for ligger vehicle like truck, bus, van as the reversing/front camera.
It can support Analog CCD 600TVL/700TVL or AHD 720P/960P/1080P for option with 4pin/BNC/RCA connector.
There is also different lens and chips to meet different customers' requirement.
Our 1080P Truck reverse camera main features for 1080P chip:
-
Adopt 1080P 2.0MP San CMOS, can capture moving images
-
Support AHD / TVI / CVI coaxial HD output, with clear and delicate image
-
Illumination 0.01Lux @ (F1.2, AGC ON), 0LUX with IR
-
Support IR-CUT switch, CDS external control, realize day and night monitoring
-
Support OSD menu control, suitable for users to define settings
-
Support Digital Wide Dynamic
-
Adapt to digital noise reduction, 3D-DNR, 2D-DNR
-
Support UTC function
-
Video 6KV lightning protection, power capacitor design
-
Support DC 6-15V wide voltage supply
-
32x32/38x38 (mm )
-
SIZE :(mm / 0.3mm)
Main Specifications
| Technology | infrared |
| Sensor | AHD 1080P |
| Shape | Box camera |
| Types | rear view camera |
| Waterproof | IP67 |
| Audio | Optional audio |
| Lens | 2.1MM/2.8MM/3.6MM |
| IR LED | 8PCS |
| Power | DC12V/24V |
| Color | Black |
| Connector | 4 PIN connector or RCA connector |
| Material | aluminium alloy |
| Effective Pixels | 720P 1.0MP/960p 1.3MP/ 1080P 2.0MP |
| Operating Temperature | -25℃~70℃ |
Our advantages
We are different from other suppliers.Welcome you to test and compare.
1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.
2. Careful production Process:
Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been coorperating with us all the time .
4.We explore some wide angle or special cameras to meet your requirements that others don't have.
