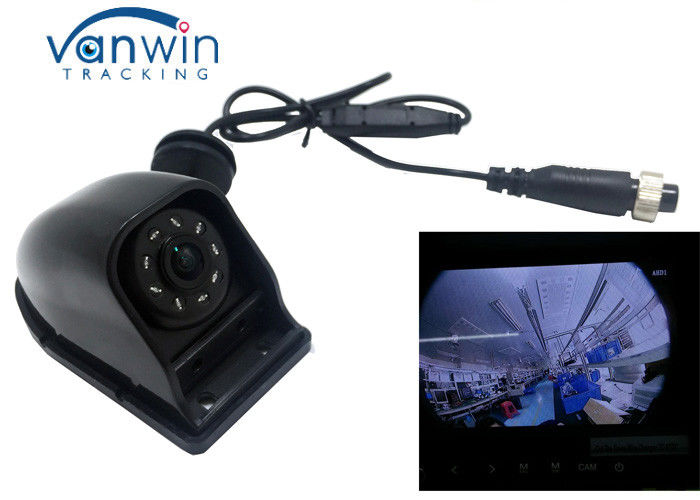

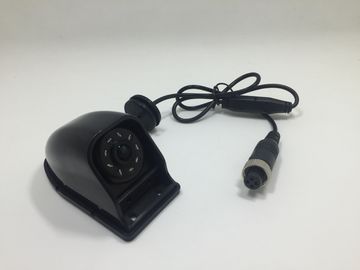

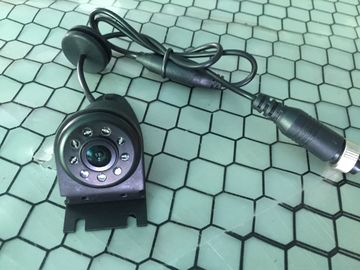

Commercial Side mount Back Up Color CMOS Camera with 180 degree Wide Angle Night Vision
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-C119 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; Commercial Side mount Back Up Color CMOS Camera with 180 degree Wide Angle Night Vision |
|
Detail Information |
|||
| Type: | 360 Degree Mini Camera | Application: | Front View / Rearview / Sideview |
|---|---|---|---|
| TV System: | PAL Or NTSC | Voltage: | DC8~35V |
| Connector: | 4 Pin Aviation,square, BNC Connector, BWM | Warranty: | 12 Months |
| Resolution: | CCD 600TVL/960P For Option | View Angle: | Horizontal Angle 180°±5° |
| IR Lights: | 9pcs | Waterproof: | Yes |
| Angle: | 180 Degree In Horizontal | Material: | Plastic Housing |
| Highlight: | mobile surveillance cameras,car reversing camera |
||
Product Description
Commercial Side mount Back Up Color CMOS Camera with 180 degree Wide Angle Night Vision
It can be used with mobile DVR system or reversing system for front view, side view and backview. It's very welcomed with its good night vision, wide degree, and special mold. It's very sturdy and not easily broken.
Compatibility
- Camera is compatible with Back Up Camera Systems, multi-input monitors and Mobile DVR.
- Camera is designed for side mounting
- Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Bus, Van, Tractor, Trailer, Crane, Dirt Wagon, etc)
Features
- High Resolution Side Mount Camera
- Camera is not adjustable within housing
- 1/3" Color CMOS Image Sensor
- CCD 600 TV lines or 960P AHD of resolution
- 180 degrees Wide Angle Camera - Blind Spot reduced
- Automatic IR Infrared LED Night Vision
- Weatherproof, Waterproof, Shockproof and High Temperature Resistance
- Side Mount Application
- High impact plastic side mount housing that prevents permanent damage to the camera
- Rubber base for vibration isolation
- 4 Pin Connector
- Dimensions: 79(L)*43(H)*36(w) mm
Main Specifications
| Image Sensor | 1/3 AR0130 CMOS |
| Video System | PAL/NTSC |
| Pixels | PAL:1280(H)×960(V) |
| NTSC:1280(H)×960(V) | |
| Horizontal Resolution | 600 TVL/960P |
| Min Illumination | 0.0001 LUX / F1.2 |
| SNR | ≥46dB |
| Electronic Shutter | 1/50-1/10000(S); 1/60～1/100000s |
| Video Output | 1.0V±0.5Vp-p 75Ω |
| View Angle | 1.9/850 horizontal angle 180°±5° |
| Working Voltage | DC8-35V |
| Consumption | 100mA±10% |
| Display image | Mirror/normal optional |
| MIC | Optional |
| Camera Len |
f:3.6mm |
Application
1. Taxi or small car, bus, truck, van and ect.
2. Frontview, sideview, backview
2. MDVR, Reversing system
