4CH 1080P 2.MP 2TB HDD Hard Disk Vehicle 3G Mobile DVR IR Camera 7" Monitor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW619HD-GSW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; 4CH 1080P 2.MP 2TB HDD Hard Disk Mobile Vehicle DVR Video Record IR Camera 7" Monitor |
|
Detail Information |
|||
| Power Supply: | 8~36V | Storage Capacity: | HDD/SSD, Can Support 2TB |
|---|---|---|---|
| Functions: | 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 6CH Alarm Input, Lan Port | Software Support: | Client, Server, Playback Software |
| Accessories: | HDD, Cameras, Extension Cables, Monitor, Sound Pik-up | Network: | WCDMA, CDMA2000， TDD-LTE, FDD-LTE |
| Tackback Device: | Support | Oil Sensor: | Support |
| People Counter: | Option | Hotspot: | Support |
| Highlight: | 3g cctv dvr,car mobile dvr |
||
Product Description
4CH 1080P 2.MP 2TB HDD Hard Disk Mobile Vehicle DVR Video Record IR Camera 7" Monitor
Mobile DVR is the most professional industrial solution for vehicle CCTV system. It offers the best and most reliable management for vehicle fleets over Internet.
Vanwin Tracking insist on the advanced design concept to provide customers with the most user-friendly& excellent quality Mobile DVR. Our quality standard can meet the international standard for global bus, taxi, truck, van, trains and ect.
The MDVR below allows you to track and view your vehicles in REAL TIME via live video camera streaming from up to 4 cameras on your truck, car ,bus,taxis, police cars, excavators, petorl trucks, law enforcement vehicles, and other various types of vehicles with people counting,RFID card reader,fuel consumption sensor,LED display functions etc.
Using the Internet, GPS, and Mobile CCTV technology, you can now view your vehicles, drivers and cargo from your office, wherever they are in the country. Our cloud-based Control Room software also allows you track your fleet, identifying speed, location, fuel-level and many more.
Main Features
- 4CH, Support 4 cameras
- H.264 compression format
- 64GB SD Card
- 2.5“ SATA 2TB Hard disk
- GPS tracking
- 3G remote control
- Built-in WIFI for option
- 6 alarm input, 1 alarm output
- 2 way intercom
- Remote oil&power cut-off
- Mirror recording in SD card
- Patent UPS continuously working to protect data upon sudden power-off
- Customized GPS data format sending(optional)
- Built-in Heater(optional)
- Lockable, metal HDD handle, protect HDD efficiently
- Watermark and Time/Date stamp in exported images
- RS232/485 interface;
- Wide applications: this MDVR is used for bus, trucks, trailors, cargo, van, vehicles, forklift, car...

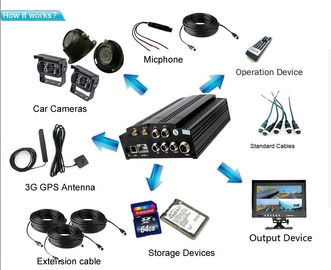

The complete kit:
Specification
|
Item |
Description |
||
|
OS |
Linux |
||
|
Graphics Operation Interface |
System parameters can be set through external display and remote controller |
||
|
Security Management |
2-level management for user password, administrator password, supporting encrypted transmission |
||
|
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
|
|
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, etc. |
||
|
Video Compression Format |
Compression coding. Applying hisilicon hi-performance processor. |
||
|
Dual-Stream |
Supported |
||
|
Preview Function |
Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images |
||
|
Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
||
|
Resolution |
CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most |
||
|
Quality |
Grade 1 to grade 5 for selection (descending) |
||
|
Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
||
|
Audio |
Audio Input, Output |
4-channel input, 1-channel output |
|
|
Compression Format |
G.726 coding |
||
|
Recording |
Storage Medium |
Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology; |
|
|
File Format/ System |
ASF/FAT32 |
||
|
Video Strategies |
Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
||
|
Video Search |
Searching by time, type, storage device and other conditions |
||
|
Video Playback |
Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files |
||
|
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time |
|||
|
Alarm |
Alarm Input/ Output |
6-channel on/off signal alarm input, 1-channel on/off signal alarm output |
|
|
Alarm Recording |
Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min |
||
|
Storage Space Alarm |
Supporting settings for alarm of storage space |
||
|
Function Alarm |
GPS overspeed alarm, acceleration alarm, motion detection alarm |
||
|
Communication Ports |
RS232, RJ45 10M/100M self-adaptable network interface |
||
|
Wireless Transmission (Optional) |
Supporting Wi-Fi; |
||
|
GPS (Optional) |
Supporting external GPS |
||
|
PTZ Control |
Supporting PTZ control realized by local; |
||
|
Parameter Configuration |
Supporting parameter configuration functions for mobile DVR coding channel; |
||
|
G-Sensor |
Embedded |
||
|
System Upgrading |
Supporting SD card, hard drive upgrading and remote upgrading |
||
|
Power Supply and Power Consumption |
Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
|
|
Input Voltage |
DC:+8V ~ +36V |
||
|
Output Voltage |
+12V@4*0.5A; +5V@0.5A |
||
|
Power-off Protection |
With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure |
||
|
Power Consumption |
<10W in normal operation; <0.5W in standby mode |
||
|
Operating Environment |
Temperature |
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
|
|
Humidity |
10% to 95% |
||
|
Dimensions |
160(W) x62(H) x200(D) mm. |
||
|
Weight |
Net: 2200g, Gross: 3500g |
||
It can support remote online monitoring by computer and Mobile APP.

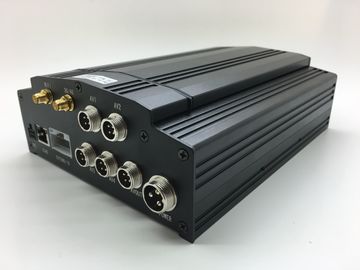

Back View
Side View

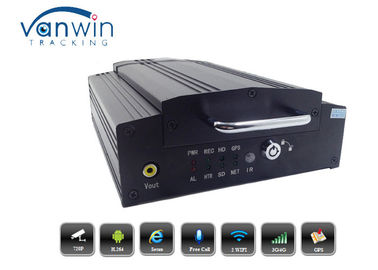

Front View
If you're interested in the system above, please be free to get the high-quality solution and system with us.
