AHD 720P GPS Dash Cam Recorder
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW619HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; 4 / 8CH HDD AHD 720P GPS 3G 4G and WiFi MDVR with 4 HD Cameras for Truck |
|
Detail Information |
|||
| Power Supply: | 8V-36V Wide Voltage | Network Port: | RJ45 |
|---|---|---|---|
| Software Support: | Client, Server, Playback Software | Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets |
| Resolution: | 720P/D1/CIF | Alarm: | 6CH Alarm Inputs, 2CH Alarm Output |
| Cameras: | Sony CCD Or AHD Cameras | 3G GPS WIFI G-sensor: | Support |
| G-sensor: | Support | Languages: | Chinese/English/Russian/Customized Language |
| People Counter Cameras: | Optional | OEM: | Support |
| Highlight: | car camera recorder,car dashboard camera |
||
Product Description

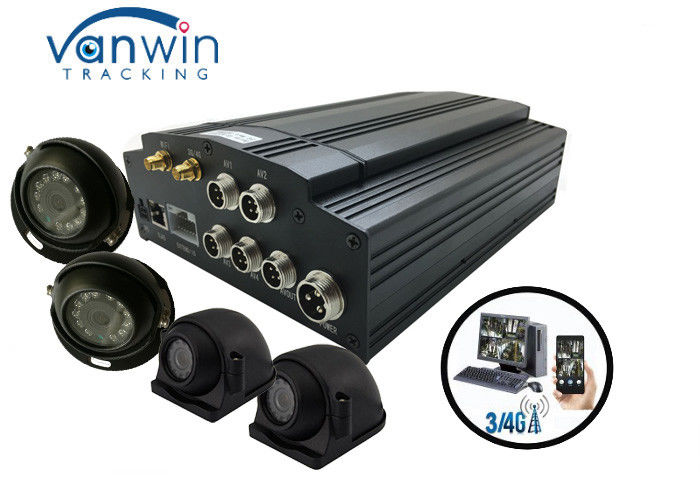

4 / 8CH HDD AHD 720P GPS 3G 4G and WiFi MDVR with 4 HD Cameras for Truck
Automobile video serveillance DVR supports 4 channel X 960P high definition resolution.
AHD 4 channel 720P 3G school bus car CCTV SD card MDVR with RFID and GPS is a practical 3G/4G+GPS system for Veihcle mobile serveillance purpose which combines latest high technology such as Audio&Video Coding&Decoding, Mass HD&SD storage, Streaming media network, Audio&Video denoising, Mechanical Shockproof(Anti-vibration), UPS power protection, Flexible wide voltage range and etc.
All our mobile DVR systems come with:
- 16 months' Warranty
- Lifetime firmware updates
- Lifetime TOLL-FREE Technical Support
Main Features

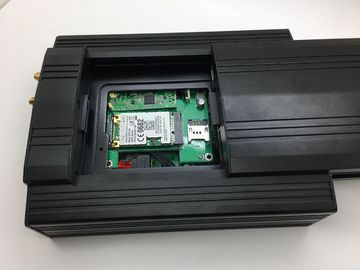

1. Support HDD storage up to 1TB& SD card storage up to 64GB, more convenient and vibration-proof than hard disk version.
2. Support four channel 4pin connector video and audio input, one channel AV connector video and audio output.
3. Support IR remote control.
4. Special design of encrption to protect recording files.
5. Support wide range of voltage input from 8V to 36V.
| 4 Channel*720P or 960P |
| H.264 compression format |
| 2.5“ SATA 1TB Hard disk |
| GPS tracking |
| 3G remote control |
| Built-in WIFI for option |
| 6 alarm input, 2 alarm output |
| 2 way intercom |
| Remote oil&power cut-off |
| Mirror recording in SD card |
| Patent UPS continuously working to protect data upon sudden power-off |
| Customized GPS data format sending(optional) |
| Built-in Heater(optional) |

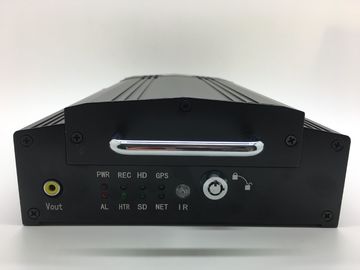

| Lockable, metal HDD handle, protect HDD efficiently |
| Watermark and Time/Date stamp in exported images |
Specifications
|
Item |
Description |
|
|
OS |
Linux |
|
|
Graphics Operation Interface |
System parameters can be set through external display and remote controller |
|
|
Security Management |
2-level management for user password, administrator password, supporting encrypted transmission |
|
|
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
|
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, etc. |
|
|
Video Compression Format |
Compression coding. Applying Hisilicon hi-performance processor. |
|
|
Dual-Stream |
Supported |
|
|
Preview Function |
Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images |
|
|
Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
|
|
Resolution |
4 channels x720P or 1080P |
|
|
Quality |
Grade 1 to grade 5 for selection (descending) |
|
|
Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
|
|
Audio |
Audio Input, Output |
4-channel input, 1-channel output |
|
Compression Format |
G.726 coding |
|
|
Recording |
Storage Medium |
Supporting dual SD card, which supports up to 32G |
|
File Format/ System |
ASF/FAT32 |
|
|
Video Strategies |
Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
|
|
Video Search |
Searching by time, type, storage device and other conditions |
|
|
Video Playback |
Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files |
|
|
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time |
||
|
Alarm |
Alarm Input/ Output |
6-channel on/off signal alarm input, 1-channel on/off signal alarm output |
|
Alarm Recording |
Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min |
|
|
Storage Space Alarm |
Supporting settings for alarm of storage space |
|
|
Function Alarm |
GPS overspeed alarm, acceleration alarm, motion detection alarm |
|
|
Communication Ports |
RS232, RJ45 10M/100M self-adaptable network interface |
|
|
Wireless Transmission (Optional) |
Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection; Compatible with GPRS, EDGE; Embedded Wi-Fi module; |
|
|
GPS (Optional) |
Supporting external GPS |
|
|
Remote Data Transmission Channel Selection |
Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies; |
|
|
PTZ Control |
Supporting PTZ control realized by local ad client software; |
|
|
Parameter Configuration |
Supporting parameter configuration functions for mobile DVR coding channel; |
|
|
G-Sensor |
Embedded |
|
|
System Upgrading |
Supporting SD card and remote upgrading |
|
|
Power Supply and Power Consumption |
Power Supply |
1. ACC on/off 2. Delayed shutdown 3. Timed on/off |
|
Input Voltage |
DC:+8V ~ +36V |
|
|
Output Voltage |
+12V@4*0.5A; +5V@0.5A |
|
|
Power-off Protection |
With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure |
|
|
Power Consumption |
<10W in normal operation; <0.5W in standby mode |
|
|
Operating Environment |
Temperature |
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
|
Humidity |
10% to 95% |
|
|
Dimensions |
141(L)×133(W)×43(H)mm |
|
