7/9/10.1 inch IPS Rear View Monitor AI Left/Right/Back Blind Spot Detection Reversing AI MDVR
Product Details:
Place of Origin: | China |
Brand Name: | Vanwin Tracking |
Certification: | CE ROHS |
Model Number: | VW906AIBSD |
Payment & Shipping Terms:
Minimum Order Quantity: | 1PC |
---|---|
Price: | USD100-USD300 |
Packaging Details: | Neutral package, carton box |
Delivery Time: | 3-15days upon payment |
Payment Terms: | T/T, Western Union,paypal |
Supply Ability: | 1000PCS/month |
Detail Information |
|||
Product Name: | 7/9/10.1 Inch IPS Rear View Monitor AI Left/Right/Back Blind Spot Detection Reversing MDVR For Truck | Storage: | SD Card Max 256GB |
---|---|---|---|
Resolution: | Support 720P/D1/CIF | Warranty: | 18 Months |
Video Input: | 4 Channels AHD 720P Video | Power Input: | DC 8V~36V |
Language: | English/Chinese/Russian | Applicable Vehicles Type: | Bus, Public Buses, Big Trucks, Coaches, Trains |
High Light: | IPS Rear View Monitor for Truck,AI IPS Rear View Monitor MDVR,Blind Spot Detection Reversing MDVR |
Product Description
7/9/10.1 inch IPS Rear View Monitor AI Left/Right/Back Blind Spot Detection Reversing MDVR for Truck
System Selling Points
7/9/10.1 Inch AHD Quad Monitor
Vehicle Blind Spot Detection Warning System(BSD)
Resolution:1024*R.G.B*600 Back Light Luminance:LED,500-650cd/㎡
View angle:L/R:85°,UP:85°,down:85° degree
Four-channel AHD video input,Full images ,Support AHD720P input
Audio Input:Built-in speaker,1 way audio input
Four channels independently adjust the image flip in left, right, upper and lower directions
4 ways Trig Trigger priority:V2>V1>V3>V4
Video storage: SD high-speed card for video storage, minimum 16GB, maximum128GB, card speed not less than 10M/S
Video compression format:H.264 compression mode
At the same time, it supports four channels of video recording, and the video recording is stored into four independent files
Supports fast photography, supports replay previous videos and images. It supports pause, fast forward, fast backward and other operations.
Video files can be locked for protection. Locked files will not be overwritten and deleted.
Storage card supports overlay deletion automatically and manual dele
Input voltage:DC + 12-36V (For operation with a camera, the required input voltage is 13V and above)
Output voltage:+11.5V/3A
Power consumption:Normal operation status < 5W (not including the display screen and the camera)
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Appearance color: black rubber paint

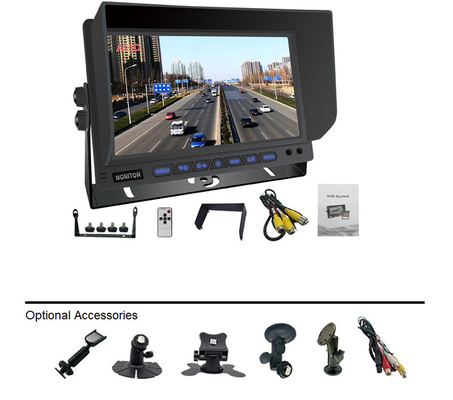

Butterfly bracket/fan bracket/Suction Cup holder (optional)
RCA/ 4pin connector (Optional)

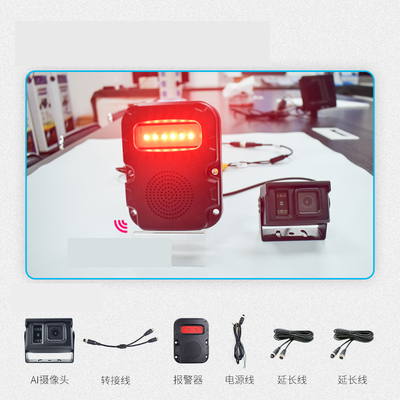

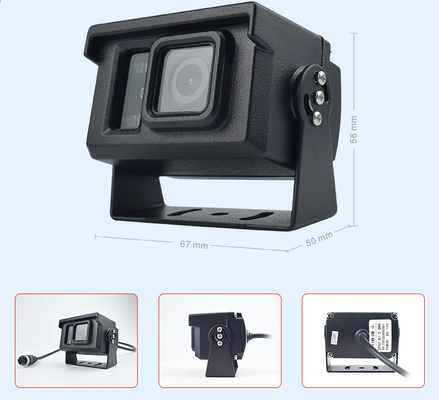

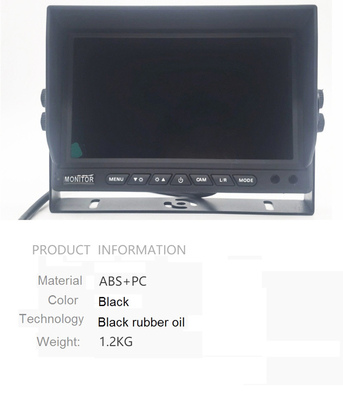

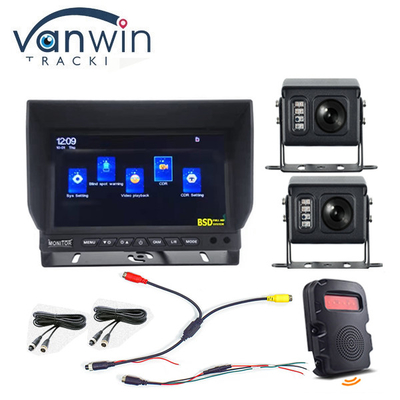

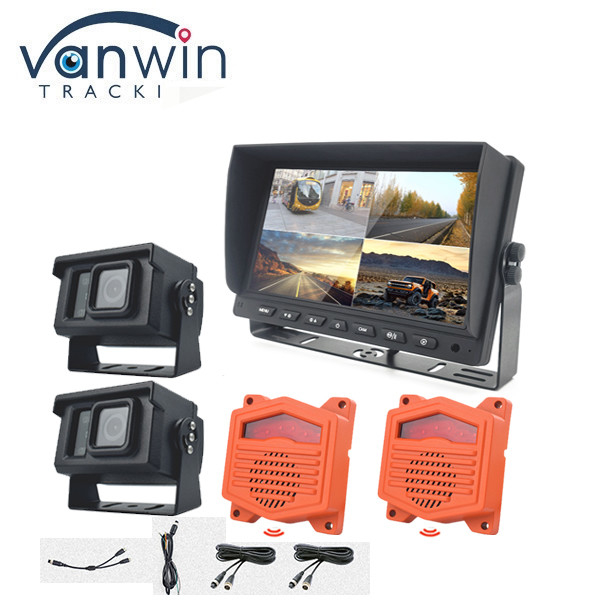

Product PHOTOS
Platform Screenshot
