7" 9" 10.1" High Definition AHD TFT Car Monitor With IPS HD Screen
Product Details:
Place of Origin: | China |
Brand Name: | Vanwin Tracking |
Certification: | CE ROHS |
Model Number: | VW706LA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1PC |
---|---|
Price: | USD30-USD70 |
Packaging Details: | Neutral package, carton box |
Delivery Time: | 3-15days upon payment |
Payment Terms: | L/C, T/T, Western Union,paypal |
Supply Ability: | 1000PCS/month |
Detail Information |
|||
Brightness: | 500-650cd/㎡ | Product Name: | AHD Car Display With IPS HD Screen |
---|---|---|---|
Support: | 2 Channel Video Inputs, Recording Function Optional | Car Make: | Universal Vehicles,buses,Bus |
Warranty: | 18 Months | Resolution: | 1024*R.G.B*600 |
Video Inputs: | 2 Channel HD Video Input, Single Image Display, Support720P/960P/1080P (Video Compatibility: CVBS /AHD) 3 Ways Trig Trigger Priority:V2>V1>V3 | Power Supply: | DC 12V-24V |
Color: | Ferrous Metal | Size: | 7inch(9inch, 10.1 Inch As Optional) |
Viewing Angle: | 160° | Format: | PAL,NTSC |
Backlight: | LED | ||
High Light: | High Definition AHD Car Display,IPS HD Screen Car Display |
Product Description
7"9"10.1"inch High Definition AHD Car Display with IPS HD screen
SPECIFICATION
7"9"10.1"-inch High Defintion Double Recording Dispiay
AV Resolution:1024*R.G.B*600
Back Light Luminance:LED,500-650cd/㎡
View angle:L/R:85°,UP:85°,down:85° degree
Two-channel AHD video input,adjustable display of single and two-segment images and picture-in-picture images Full images/2 images adjustable
Support AHD720P/960P/1080P and CVBS multi-video hybrid input
Audio Input:Built-in speaker,1 way audio input(V2)
2 ways Trig Trigger priority:V2>V1, Reverse reference point
TWO channels independently adjust the image flip in left, right, upper and lower directions
with light sensor receiver,can adjust screen brightness automatically day & night
System:PAL&NTSC auto-switching
Power supply: Power supply: DC 9V-36V input,12V output
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Appearance color: black rubber paint
standard:Metal U type bracket, Detachable sunshade
/Butterfly bracket/fan bracket (optional)
RCA/ 4pin connector (Optional)

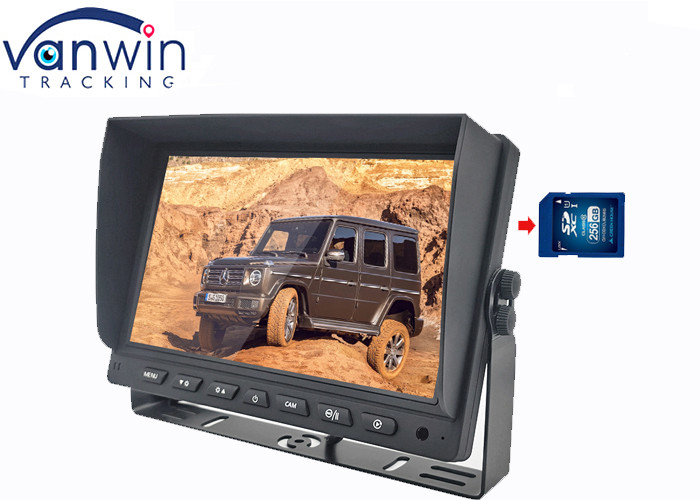

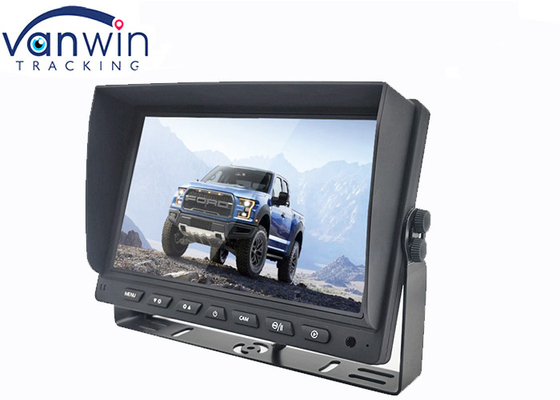

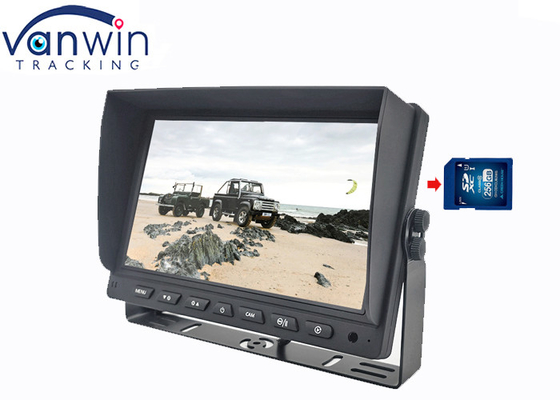

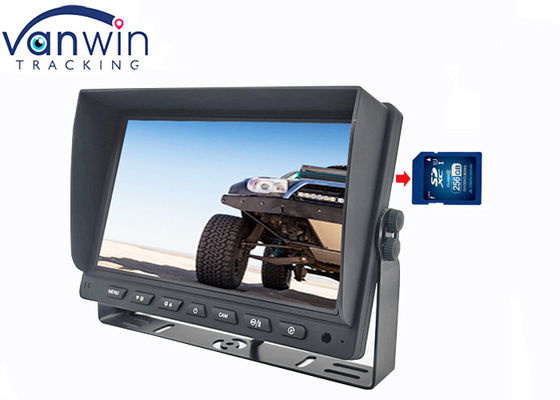

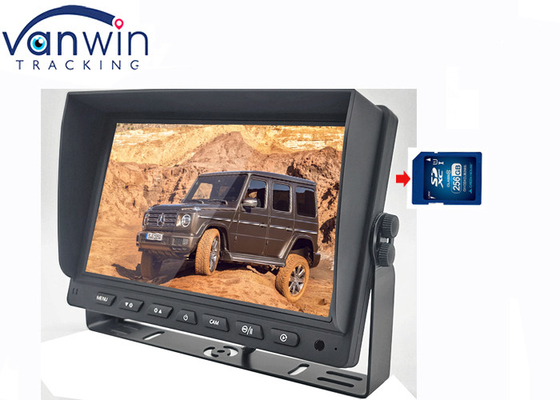

PRODUCT PICTURE

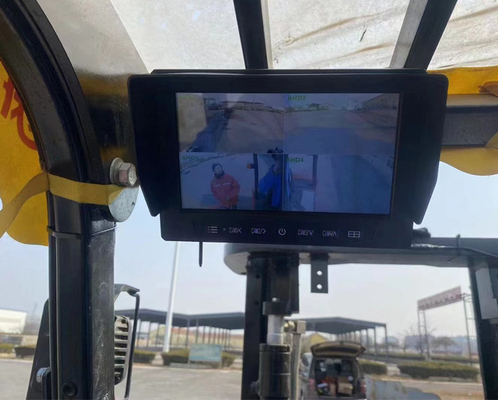

INSTALLATION
APPLICATION
